CYW20738A2KML3G

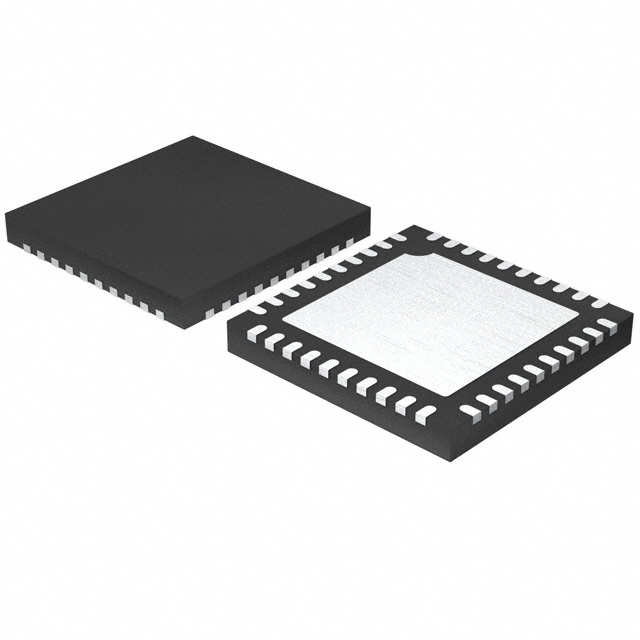

lmages are for reference only.CYW20738A2KML3G
IC RF TXRX+MCU BLE 40QFN
Datasheet40-VFQFN Exposed Pad
62,743 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
IC RF TxRx + MCU Bluetooth Bluetooth v4.0 2.4GHz 40-VFQFN Exposed Pad
CYW20738A2KML3G
| Category | RF and Wireless - RF Transceiver ICs - |
| Manufacturer | Infineon Technologies |
| Series | - |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Type | TxRx + MCU |
| RF Family/Standard | Bluetooth |
| Protocol | Bluetooth v4.0 |
| Modulation | GFSK |
| Frequency | 2.4GHz |
| Data Rate (Max) | 1Mbps |
| Power - Output | 4dBm |
| Sensitivity | -93dBm |
| Memory Size | - |
| Serial Interfaces | I2C, SPI, UART |
| GPIO | 22 |
| Voltage - Supply | 1.2V |
| Current - Receiving | 26.8mA |
| Current - Transmitting | 26.9mA |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Package / Case | 40-VFQFN Exposed Pad |
| Supplier Device Package | 40-QFN (6x6) |
| Base Product Number | CYW20738 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | CYW20738A1KFBGT | CYW20738A2KML3GT | CYW2046SB1KUFBGT | CYW20702A1KWFBGAlternate Purchasing Options |
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC RF TXRX+MCU 64FBGA | IC RF TXRX+MCU BLE 40QFN | IOT BLUETOOTH VFBGA | IC RF TXRX+MCU BLE 50WFBGA |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tray |
