CZ3704

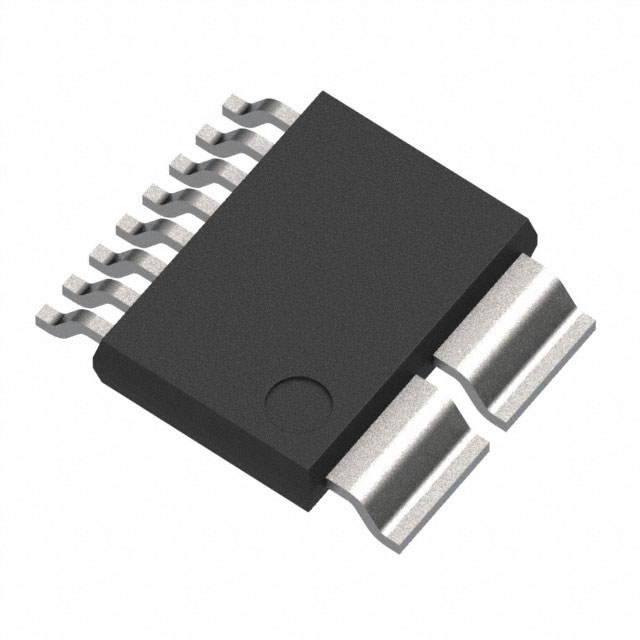

lmages are for reference only.CZ3704
IC CORELESS CURRENT SENSOR 10VSO
Datasheet16-PowerSOIC (0.303", 7.70mm Width), 10 Leads
71,571 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Current Sensor 54A 1 Channel Hall Effect, Open Loop Bidirectional 16-PowerSOIC (0.303", 7.70mm Width), 10 Leads
CZ3704
| Category | Sensors, Transducers - Current Sensors - |
| Manufacturer | Asahi Kasei Microdevices/AKM |
| Series | CZ37 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| For Measuring | AC/DC |
| Sensor Type | Hall Effect, Open Loop |
| Current - Sensing | 54A |
| Number of Channels | 1 |
| Output | Ratiometric, Voltage |
| Sensitivity | 40mV/A |
| Frequency | - |
| Linearity | ±0.13% |
| Accuracy | ±1% |
| Voltage - Supply | 4.5V ~ 5.5V |
| Response Time | 1µs |
| Current - Supply (Max) | 25mA |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Bidirectional |
| Mounting Type | Surface Mount |
| Package / Case | 16-PowerSOIC (0.303", 7.70mm Width), 10 Leads |
| Supplier Device Package | 10-SMD |
| Base Product Number | CZ370 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | CZ3700 | CZ3701 | CZ3702 | CZ3703 |
| Manufacturer | Asahi Kasei Microdevices/AKM | Asahi Kasei Microdevices/AKM | Asahi Kasei Microdevices/AKM | Asahi Kasei Microdevices/AKM |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC CORELESS CURRENT SENSOR 10VSO | IC CORELESS CURRENT SENSOR 10VSO | IC CORELESS CURRENT SENSOR 10VSO | IC CORELESS CURRENT SENSOR 10VSO |
| Series | Asahi Kasei Microdevices/AKM | Asahi Kasei Microdevices/AKM | Asahi Kasei Microdevices/AKM | Asahi Kasei Microdevices/AKM |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
