CZ375ACB-HA

CZ375ACB-HA

CZ375ACB-HA

lmages are for reference only.
  • Part Number

    CZ375ACB-HA

  • Manufacturer

    Asahi Kasei Microdevices/AKM
  • Description

    CORELESS CURRENT SENSOR

  • Datasheet

    DatasheetDatasheet
  • Package

    10-SMD, Gull Wing

  • In Stock

    15,593 piece(s)

  • Unit Price

    Please Contact Us

  • Lead Time

    Can Ship Immediately

Request for Quotation

  • Payment Methods

  • Delivery Services

Current Sensor 115A 1 Channel Hall Effect, Open Loop Bidirectional 10-SMD, Gull Wing

Quick Inquiry

CZ375ACB-HA

Get the Price Now!

Specifications

Category Sensors, Transducers - Current Sensors -
Manufacturer Asahi Kasei Microdevices/AKM
Series CZ
Packaging Tape & Reel (TR)-->Cut Tape (CT)
RoHS Status
For Measuring AC/DC
Sensor Type Hall Effect, Open Loop
Current - Sensing 115A
Number of Channels 1
Output Ratiometric, Voltage
Sensitivity 19.5mV/A
Frequency -
Linearity ±0.15%
Accuracy ±0.9%
Voltage - Supply 4.5V ~ 5.5V
Response Time 500ns
Current - Supply (Max) 22.4mA
Operating Temperature -40°C ~ 105°C
Polarization Bidirectional
Mounting Type Surface Mount
Package / Case 10-SMD, Gull Wing
Supplier Device Package 10-SMD
Base Product Number -
Grade -
Qualification -

Parts with Similar Specifications

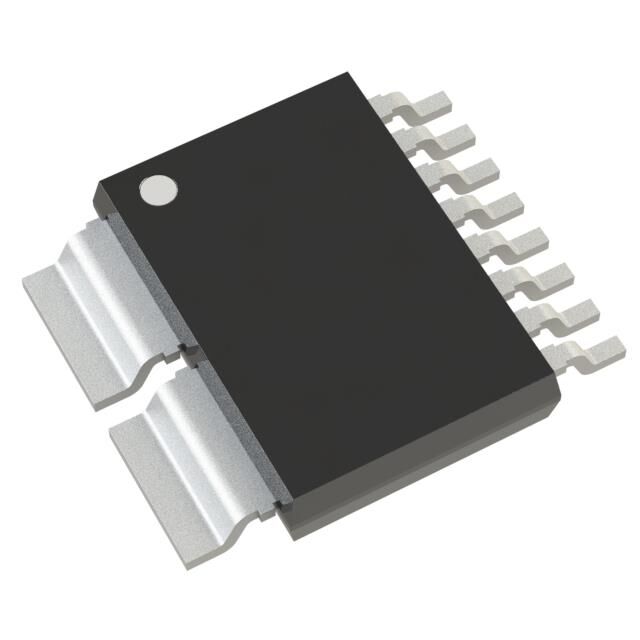

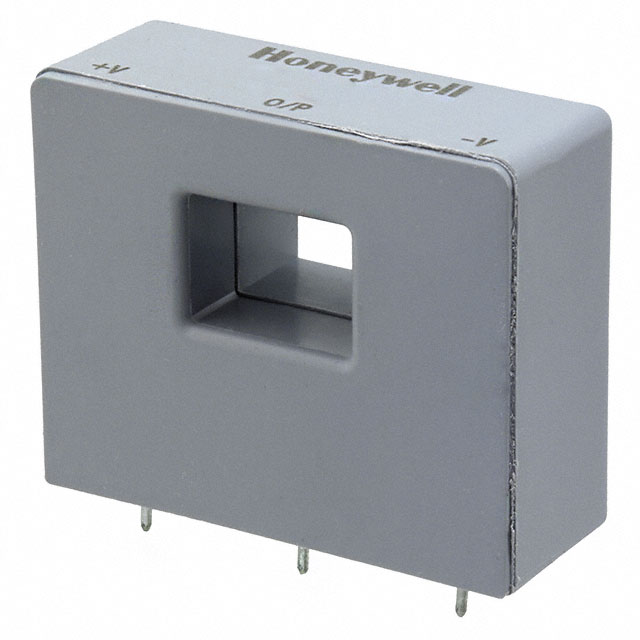

Product Attribute CZ375BCB-HA CZ375CCB-HA CZ375DCB-HA CSNF151-001
Part Number CZ375BCB-HA CZ375CCB-HA CZ375DCB-HA CSNF151-001
Manufacturer Asahi Kasei Microdevices/AKM Asahi Kasei Microdevices/AKM Asahi Kasei Microdevices/AKM Honeywell Sensing and Productivity Solutions
RoHS Status RoHS Compliant
Description CORELESS CURRENT SENSOR CORELESS CURRENT SENSOR CORELESS CURRENT SENSOR SENSOR CURRENT HALL 180A AC/DC
Series Asahi Kasei Microdevices/AKM Asahi Kasei Microdevices/AKM Asahi Kasei Microdevices/AKM Honeywell Sensing and Productivity Solutions
Packaging Tape & Reel (TR)-->Cut Tape (CT) Tape & Reel (TR)-->Cut Tape (CT) Tape & Reel (TR)-->Cut Tape (CT) Bulk
