CZDM1003N BK
lmages are for reference only.CZDM1003N BK

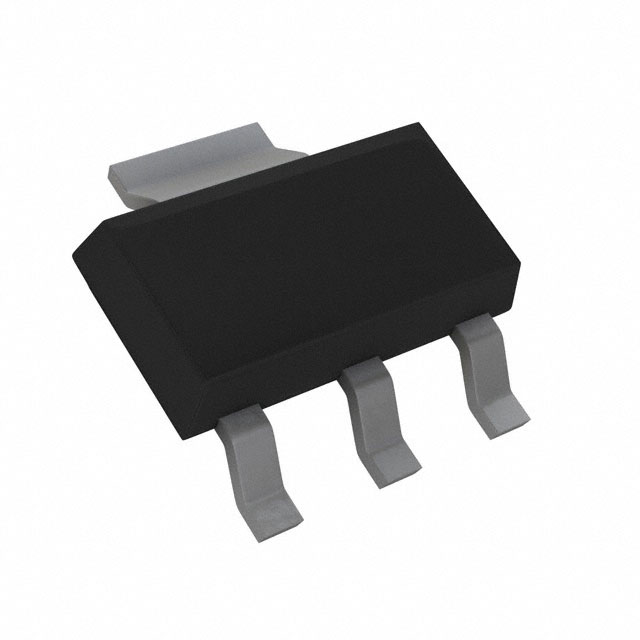

MOSFET N-CH 100V 3A SOT-223
DatasheetTO-261-4, TO-261AA
21,723 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 100 V 3A (Ta) 2W (Ta) Surface Mount SOT-223
CZDM1003N BK
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Central Semiconductor Corp |
| Series | - |
| Packaging | Tube |
| RoHS Status | |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 100 V |
| Current - Continuous Drain (Id) @ 25°C | 3A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 150mOhm @ 2A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Vgs (Max) | 20V |
| Input Capacitance (Ciss) (Max) @ Vds | 975 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 2W (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-223 |
| Package / Case | TO-261-4, TO-261AA |
| Base Product Number | - |
| Gate Charge (Qg) (Max) @ Vgs | 15 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | CZDM1003N TR | BS170PSTOA | AUIRF4104S | TPIC5302D |
| Manufacturer | Central Semiconductor Corp | Diodes Incorporated | Infineon Technologies | Texas Instruments |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS non-compliant | |
| Description | MOSFET N-CH 100V 3A SOT-223 | MOSFET N-CH 60V 270MA E-LINE | MOSFET N-CH 40V 75A D2PAK | N-CHANNEL POWER MOSFET |
| Series | - | - | HEXFET® | * |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tube | Bulk |
