D1MPC0603DR020FF-T5

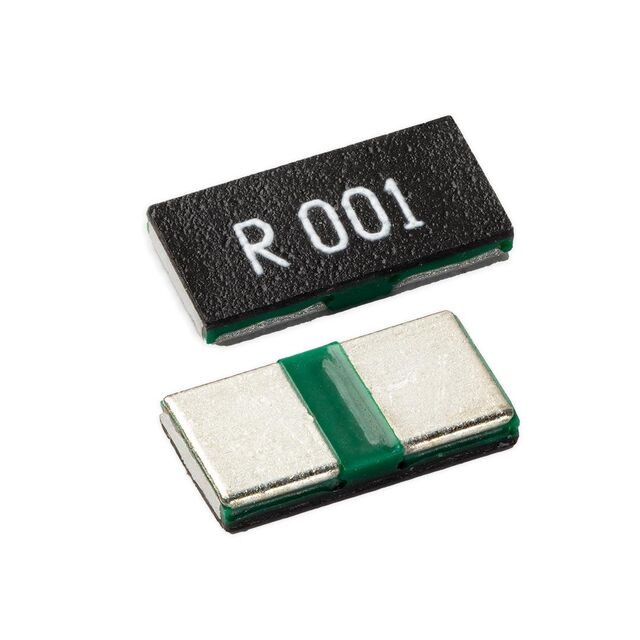

lmages are for reference only.D1MPC0603DR020FF-T5
RES 0.02 OHM 1% 1/3W 0603
Datasheet0603 (1608 Metric)
75,784 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
20 mOhms ±1% 0.333W, 1/3W Chip Resistor 0603 (1608 Metric) Anti-Sulfur, Current Sense, Moisture Resistant Metal Foil
D1MPC0603DR020FF-T5
| Category | Resistors - Chip Resistor Surface Mount - |
| Manufacturer | Thin Film Technology Corp. |
| Series | D1MPC |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Resistance | 20 mOhms |
| Tolerance | ±1% |
| Power (Watts) | 0.333W, 1/3W |
| Composition | Metal Foil |
| Features | Anti-Sulfur, Current Sense, Moisture Resistant |
| Temperature Coefficient | ±75ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | 0603 |
| Ratings | - |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Height - Seated (Max) | 0.022" (0.55mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | D1MPC0603DR006FF-T5 | D1MPC0603DR007FF-T5 | D1MPC0603DR008FF-T5 | D1MPC0603DR009FF-T5 |
| Manufacturer | Thin Film Technology Corp. | Thin Film Technology Corp. | Thin Film Technology Corp. | Thin Film Technology Corp. |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | RES 0.006 OHM 1% 1/3W 0603 | RES 0.007 OHM 1% 1/3W 0603 | RES 0.008 OHM 1% 1/3W 0603 | RES 0.009 OHM 1% 1/3W 0603 |
| Series | Thin Film Technology Corp. | |||
| Packaging | Tape & Reel (TR) |
