D369-B33-NS4

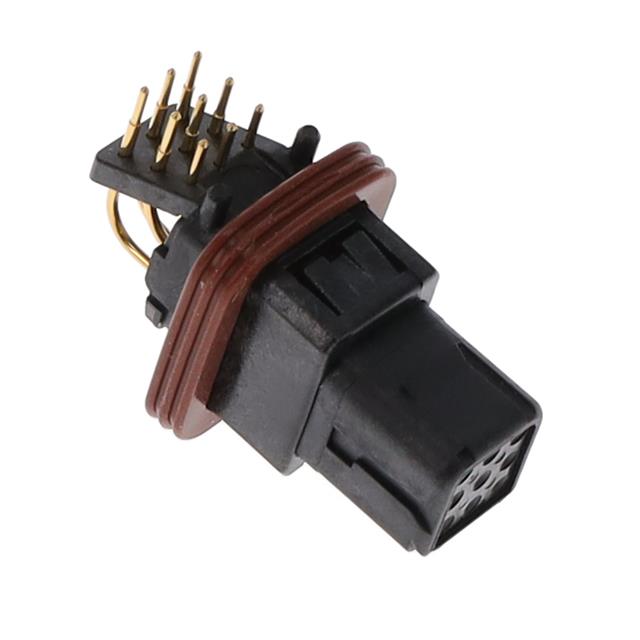

lmages are for reference only.D369-B33-NS4
D369 PANEL PCB RECEPT 3 WAY SOCK
Datasheet-
89,355 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
3 Position Receptacle Connector Board Edge, Through Hole, Right Angle Gold
D369-B33-NS4
| Category | Connectors, Interconnects - Rectangular Connectors - Headers-Receptacles-Female Sockets |
| Manufacturer | TE Connectivity Deutsch Connectors |
| Series | 369 |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Style | Board to Cable/Wire |
| Number of Positions | 3 |
| Number of Positions Loaded | All |
| Pitch - Mating | - |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Mounting Type | Board Edge, Through Hole, Right Angle |
| Termination | Solder |
| Fastening Type | Latch Holder |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | - |
| Insulation Color | Black |
| Insulation Height | - |
| Contact Length - Post | 0.118" (3.00mm) |
| Operating Temperature | -55°C ~ 175°C |
| Material Flammability Rating | - |
| Contact Finish - Post | - |
| Mated Stacking Heights | - |
| Ingress Protection | IP67 |
| Features | Board Guide |
| Current Rating (Amps) | - |
| Voltage Rating | - |
| Applications | - |
| Insulation Material | Polyetherimide, Glass Filled |
| Contact Shape | Circular |
| Contact Material | - |
| Contact Finish Thickness - Post | - |
| Base Product Number | D369 |
| Product Attribute |  |
|
 |
|
| Part Number | D369-B33-NS4-119P | D369-B66-NS4 | D369-B66-NS4-119P | D369-B99-NS4 |
| Manufacturer | TE Connectivity Deutsch Connectors | TE Connectivity Deutsch Connectors | TE Connectivity Deutsch Connectors | TE Connectivity Deutsch Connectors |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | 369 3 WAY PANEL MNT REC, 90 PCB | D369 PANEL PCB RECEPT 6 WAY SOCK | 369 6 WAY PANEL MNT REC, 90 PCB | D369 PANEL PCB RECEPT 9 WAY SOCK |
| Series | TE Connectivity Deutsch Connectors | TE Connectivity Deutsch Connectors | TE Connectivity Deutsch Connectors | TE Connectivity Deutsch Connectors |
| Packaging | Box | Bulk | Box | Bulk |
