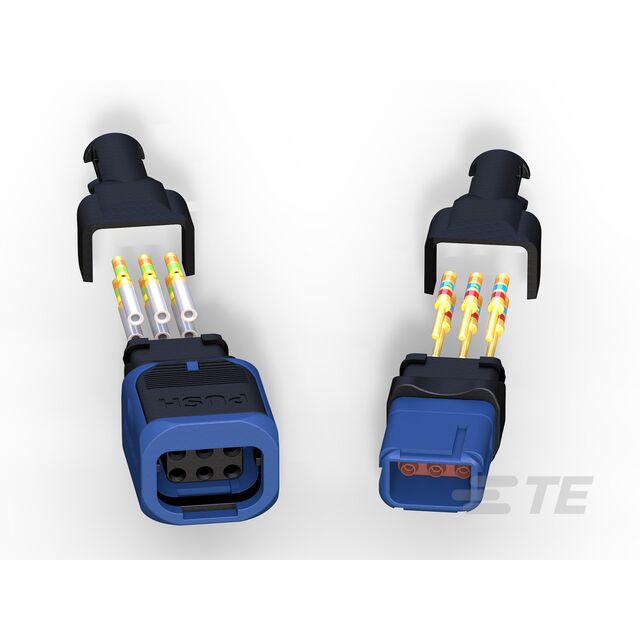

D369-MR99-NS1
lmages are for reference only.D369-MR99-NS1
9 WAY, SHIELDED REC, CRIMP, SKT
Datasheet-
37,894 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
9 Position Rectangular Receptacle Connector Crimp Gold 22-26 AWG
D369-MR99-NS1
| Category | Connectors, Interconnects - Rectangular Connectors - Free Hanging-Panel Mount |
| Manufacturer | TE Connectivity Deutsch Connectors |
| Series | 369 |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Number of Positions | 9 |
| Pitch | 0.100" (2.54mm) |
| Number of Rows | 3 |
| Row Spacing | 0.100" (2.54mm) |
| Mounting Type | Free Hanging (In-Line) |
| Fastening Type | Latch Lock |
| Cable Termination | Crimp |
| Wire Type | Discrete |
| Wire Gauge | 22-26 AWG |
| Features | Sealed |
| Contact Finish | Gold |
| Contact Finish Thickness | - |
| Color | Black |
| Base Product Number | D369 |
| Product Attribute |  |
 |
 |
 |

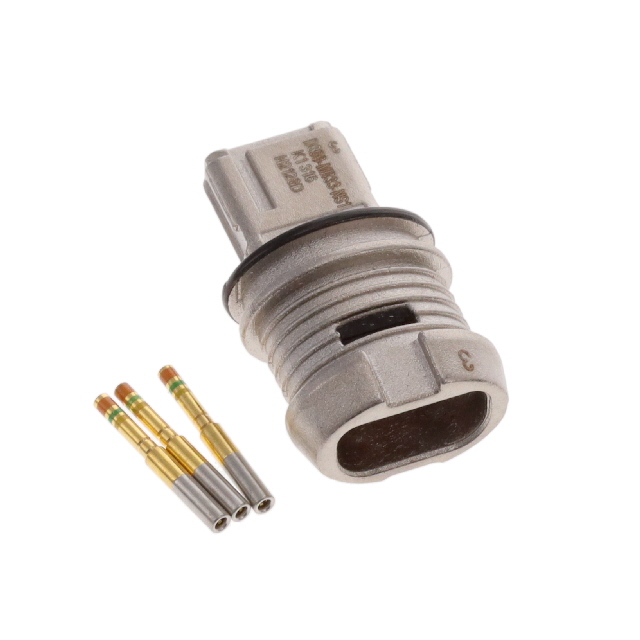

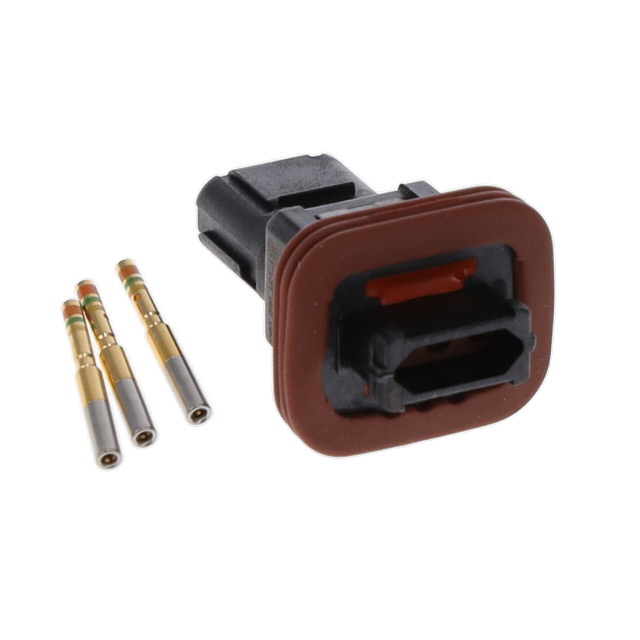

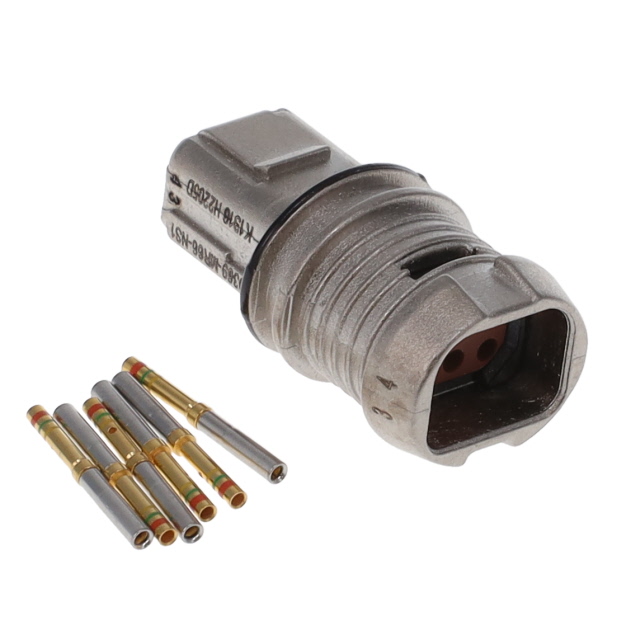

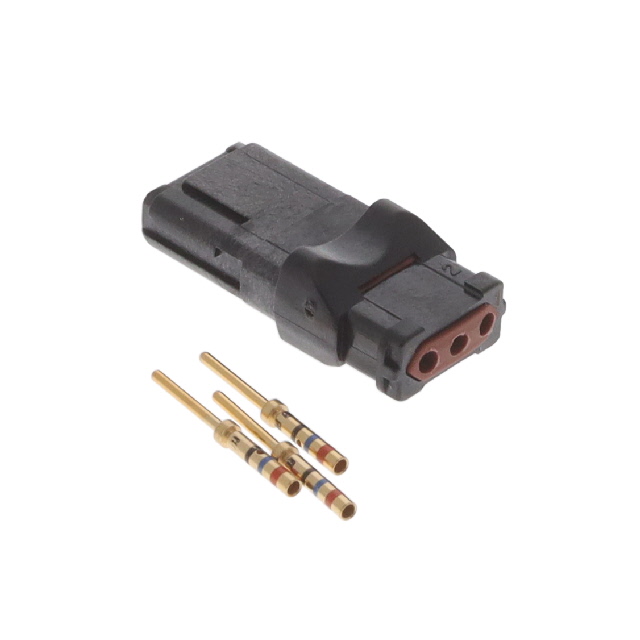

| Part Number | D369-MR33-NS1 | D369-MR66-NS1 | D369-B33-NS1-119P | D369-HR33-NP0 |
| Manufacturer | TE Connectivity Deutsch Connectors | TE Connectivity Deutsch Connectors | TE Connectivity Deutsch Connectors | TE Connectivity |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS Compliant | |
| Description | 3 WAY, SHIELDED REC, CRIMP, SKT | 6 WAY, SHIELDED REC, CRIMP, SKT | 369 3 WAY PANEL MNT REC, CRIMP, | Combination Line Connector, 3 Co |
| Series | 369 | 369 | 369 | * |
| Packaging | Box | Box | Box | Bulk |
