D55342H07B75J0RTS

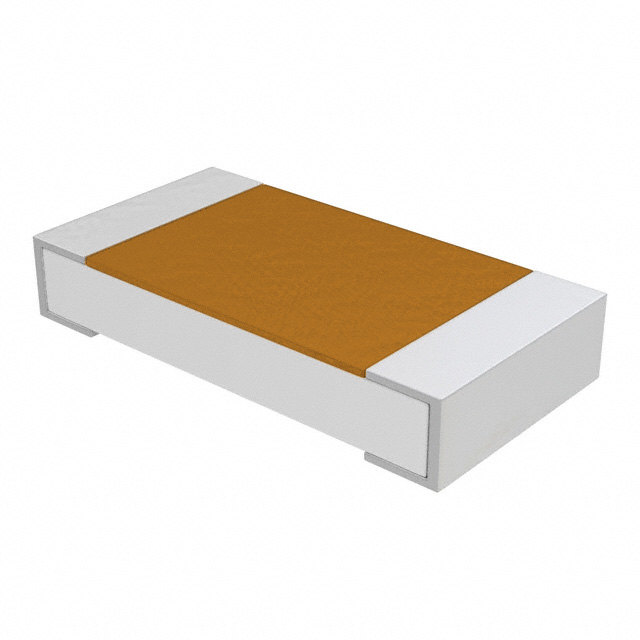

lmages are for reference only.D55342H07B75J0RTS
RES SMD 75 OHM 5% 1/4W 1206
Datasheet1206 (3216 Metric)
91,192 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
75 Ohms ±5% 0.25W, 1/4W Chip Resistor 1206 (3216 Metric) Military, Non-Inductive Thin Film
D55342H07B75J0RTS
| Category | Resistors - Chip Resistor Surface Mount - |
| Manufacturer | Vishay Dale Thin Film |
| Series | Military, MIL-PRF-55342, RM1206 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | RoHS non-compliant |
| Resistance | 75 Ohms |
| Tolerance | ±5% |
| Power (Watts) | 0.25W, 1/4W |
| Composition | Thin Film |
| Features | Military, Non-Inductive |
| Temperature Coefficient | ±50ppm/°C |
| Operating Temperature | -55°C ~ 150°C |
| Package / Case | 1206 (3216 Metric) |
| Supplier Device Package | 1206 |
| Ratings | - |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Height - Seated (Max) | 0.033" (0.84mm) |
| Number of Terminations | 2 |
| Failure Rate | R (0.01%) |
| Base Product Number | D55342 |
| Product Attribute |  |
 |
 |
 |
| Part Number | D55342H07B75J0RT1 | D55342H07B75J0RT5 | D55342H07B715DMWS | D55342H07B715DRT0 |
| Manufacturer | Vishay Dale Thin Film | Vishay Dale Thin Film | Vishay Dale Thin Film | Vishay Dale Thin Film |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant |
| Description | RES SMD 75 OHM 5% 1/4W 1206 | RES SMD 75 OHM 5% 1/4W 1206 | RES SMD 715 OHM 1% 1/4W 1206 | D55342H 50PPM 1206 715 1% R T0 |
| Series | Vishay Dale Thin Film | Vishay Dale Thin Film | Vishay Dale Thin Film | |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
