Product CatalogPart Number
D55342K07B100DRS3
Manufacturer
Vishay DaleDescription
RES SMD 100 OHM 1% 1/4W 1206
Datasheet
DatasheetPackage
1206 (3216 Metric)
In Stock
78,126 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
D55342K07B100DRS3
D55342K07B100DRS3

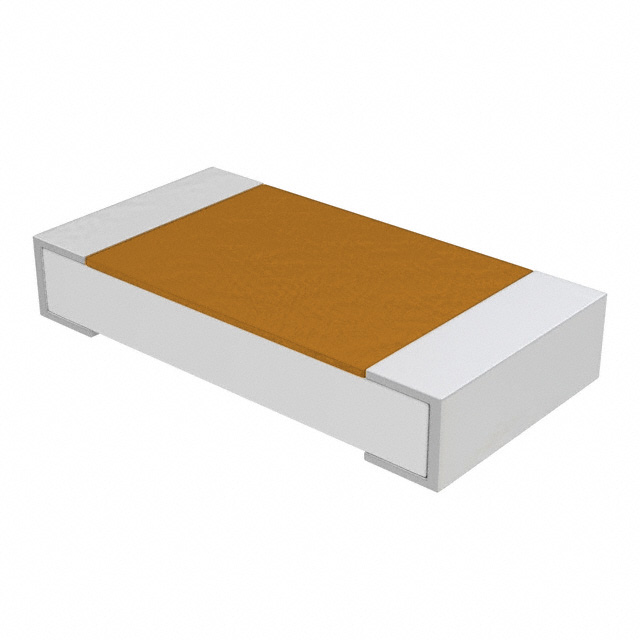

lmages are for reference only.Payment Methods
Delivery Services
100 Ohms ±1% 0.25W, 1/4W Chip Resistor 1206 (3216 Metric) Military Thick Film
Quick Inquiry
D55342K07B100DRS3
Specifications
| Category | Resistors - Chip Resistor Surface Mount - |
| Manufacturer | Vishay Dale |
| Series | Military, MIL-PRF-55342, RM1206 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | RoHS non-compliant |
| Resistance | 100 Ohms |
| Tolerance | ±1% |
| Power (Watts) | 0.25W, 1/4W |
| Composition | Thick Film |
| Features | Military |
| Temperature Coefficient | ±100ppm/°C |
| Operating Temperature | -55°C ~ 150°C |
| Package / Case | 1206 (3216 Metric) |
| Supplier Device Package | 1206 |
| Ratings | - |
| Size / Dimension | 0.125" L x 0.063" W (3.18mm x 1.60mm) |
| Height - Seated (Max) | 0.033" (0.84mm) |
| Number of Terminations | 2 |
| Failure Rate | R (0.01%) |
| Base Product Number | D55342 |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | D55342K07B100DCBSV | D55342K07B100DMBSV | D55342K07B100DMTFV | D55342K07B100DMTSV |
| Manufacturer | Vishay Dale Thin Film | Vishay Dale Thin Film | Vishay Dale Thin Film | Vishay Dale Thin Film |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant |
| Description | RES SMD 100 OHM 1% 1/4W 1206 | D55342K 100PPM 1206 100 1% M BS | RES SMD 100 OHM 1% 1/4W 1206 | RES SMD 100 OHM 1% 1/4W 1206 |
| Series | Vishay Dale Thin Film | Vishay Dale Thin Film | ||
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) |
