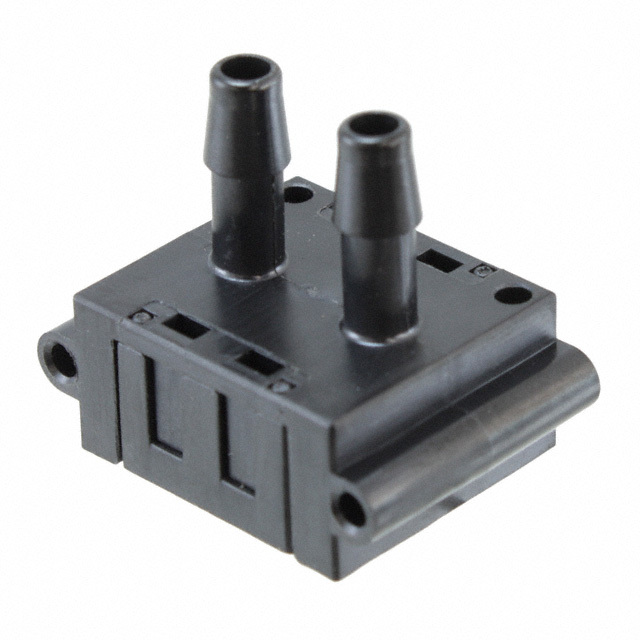

D6F-PH0505AD3
lmages are for reference only.D6F-PH0505AD3
SENSOR 0.01PSID 0.19" 12BIT 4SIP
Datasheet4-SIP, Dual Top Ports
10,527 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Pressure Sensor -0.01PSI ~ 0.01PSI (-0.05kPa ~ 0.05kPa) Differential Male - 0.19" (4.93mm) Tube, Dual 12 b 4-SIP, Dual Top Ports
D6F-PH0505AD3
| Category | Sensors, Transducers - Pressure Sensors-Transducers - |
| Manufacturer | Omron Electronics Inc-EMC Div |
| Series | D6F-PH |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Base Product Number | D6F-PH |
| Applications | - |
| Pressure Type | Differential |
| Operating Pressure | -0.01PSI ~ 0.01PSI (-0.05kPa ~ 0.05kPa) |
| Output Type | I2C |
| Output | 12 b |
| Accuracy | ±3% |
| Voltage - Supply | 2.3V ~ 3.6V |
| Port Size | Male - 0.19" (4.93mm) Tube, Dual |
| Port Style | Barbed |
| Features | Temperature Compensated |
| Termination Style | PC Pin |
| Maximum Pressure | 1.45PSI (10kPa) |
| Operating Temperature | -20°C ~ 80°C |
| Mounting Type | Through Hole |
| Package / Case | 4-SIP, Dual Top Ports |
| Supplier Device Package | 4-SIP |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

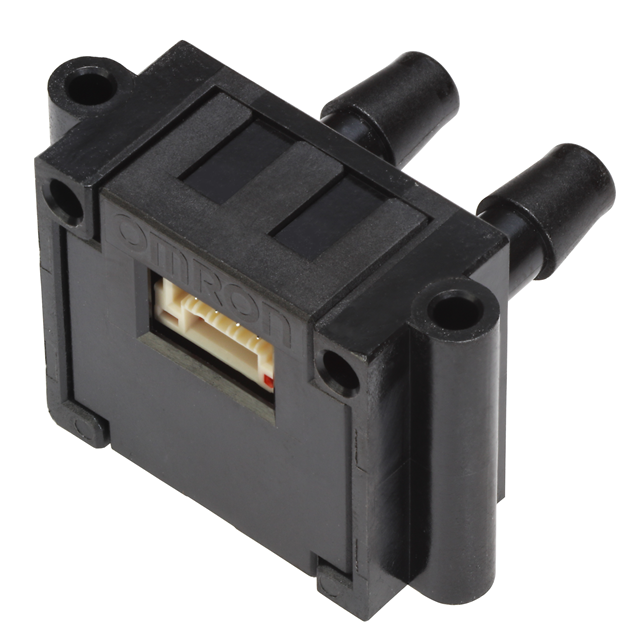

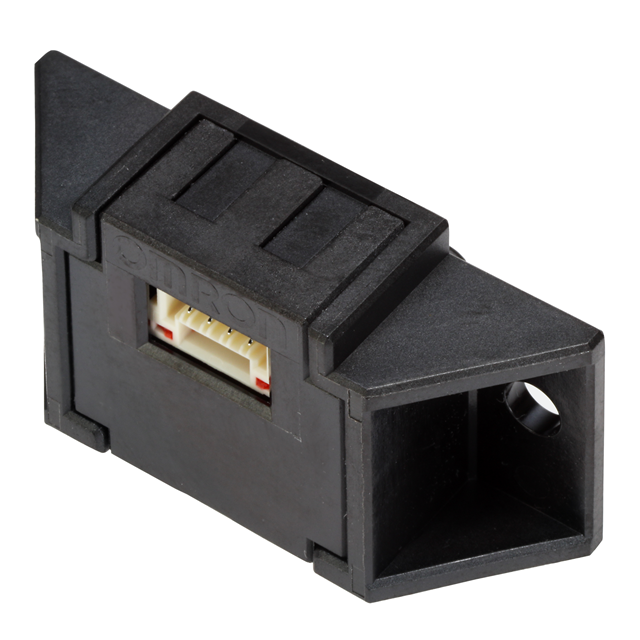

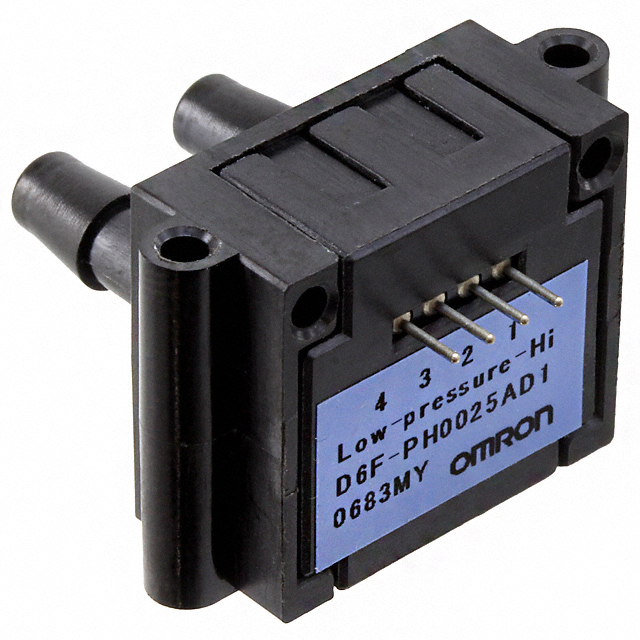

| Part Number | D6F-PH0505AD4 | D6F-PH0505AMD4 | D6F-PH0025AD1 | D6F-PH0025AD2 |
| Manufacturer | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div |
| RoHS Status | RoHS Compliant | RoHS Compliant | ROHS3 Compliant | RoHS Compliant |
| Description | SENSOR 0.01PSID 0.19" 12BIT 4SIP | SENSOR 0.01PSID 0.16" 12BIT 4SIP | SENSOR 0.04PSID 0.19" 12BIT 4SIP | SENSOR 0.04PSID 0.19" 12BIT 4SIP |
| Series | D6F-PH | D6F-PH | D6F-PH | D6F-PH |
| Packaging | Tray | Tray | Bulk | Tray |
