DAC70004IDMDR
lmages are for reference only.DAC70004IDMDR
IC DAC 14BIT V-OUT 14VSON
Datasheet14-VFDFN Exposed Pad
22,760 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
14 Bit Digital to Analog Converter 4 14-VSON (4x3)
DAC70004IDMDR
| Category | Integrated Circuits (ICs) - Data Acquisition - Digital to Analog Converters DAC |
| Manufacturer | Texas Instruments |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Number of Bits | 14 |
| Number of D/A Converters | 4 |
| Settling Time | 8µs |
| Output Type | Voltage - Buffered |
| Differential Output | No |
| Data Interface | SPI, DSP |
| Reference Type | External |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| INL/DNL (LSB) | -, ±1 (Max) |
| Architecture | R-2R |
| Operating Temperature | -40°C ~ 125°C |
| Package / Case | 14-VFDFN Exposed Pad |
| Supplier Device Package | 14-VSON (4x3) |
| Mounting Type | Surface Mount |
| Base Product Number | DAC70004 |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
|
 |

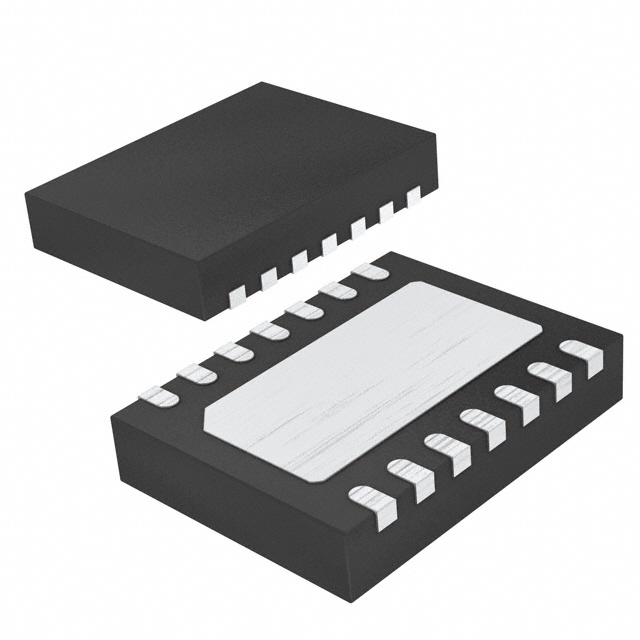

| Part Number | DAC70004IDMDR | DAC70004IDMDT | DAC70004IDMDT | DAC70004IPW |
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC DAC 14BIT V-OUT 14VSON | IC DAC 14BIT V-OUT 14VSON | IC DAC 14BIT V-OUT 14VSON | IC DAC 14BIT V-OUT 14TSSOP |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tube |
