DB103G
lmages are for reference only.DB103G
BRIDGE RECT 1PHASE 200V 1A DB
Datasheet4-EDIP (0.321", 8.15mm)
44,614 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Bridge Rectifier Single Phase Standard 200 V Through Hole DB
DB103G
| Category | Discrete Semiconductor Products - Diodes - Bridge Rectifiers |
| Manufacturer | GeneSiC Semiconductor |
| Series | - |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Diode Type | Single Phase |
| Technology | Standard |
| Voltage - Peak Reverse (Max) | 200 V |
| Current - Average Rectified (Io) | 1 A |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 1 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 200 V |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | 4-EDIP (0.321", 8.15mm) |
| Supplier Device Package | DB |
| Base Product Number | DB103 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
 |
 |

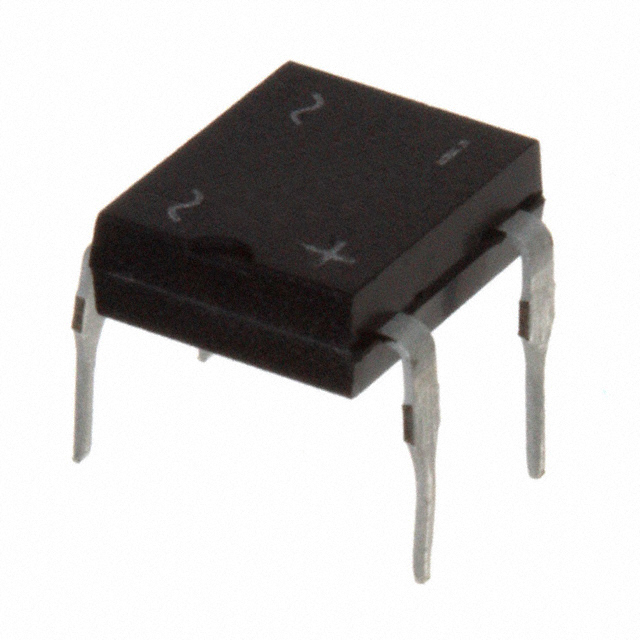

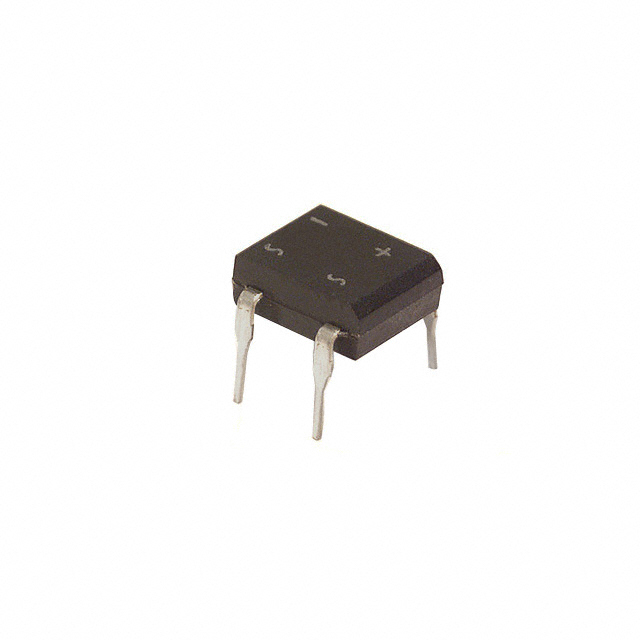

| Part Number | DB103 | DB103 | DB103-BP | DB103-G |
| Manufacturer | SMC Diode Solutions | Micro Commercial Co | Micro Commercial Co | Comchip Technology |
| RoHS Status | ROHS3 Compliant | RoHS non-compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | BRIDGE RECT 1PHASE 200V 1A DB-M | BRIDGE RECT 1PHASE 200V 1A DB-1 | BRIDGE RECT 1PHASE 200V 1A DB-1 | BRIDGE RECT 1PHASE 200V 1A DB |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Tube | Bulk |
