DB106
lmages are for reference only.DB106
BRIDGE RECT 1PHASE 800V 1A DB-1
Datasheet4-EDIP (0.321", 8.15mm)
68,407 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Bridge Rectifier Single Phase Standard 800 V Through Hole DB-1
DB106
| Category | Discrete Semiconductor Products - Diodes - Bridge Rectifiers |
| Manufacturer | Micro Commercial Co |
| Series | - |
| Packaging | Tube |
| RoHS Status | RoHS non-compliant |
| Diode Type | Single Phase |
| Technology | Standard |
| Voltage - Peak Reverse (Max) | 800 V |
| Current - Average Rectified (Io) | 1 A |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 1 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 800 V |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | 4-EDIP (0.321", 8.15mm) |
| Supplier Device Package | DB-1 |
| Base Product Number | DB106 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
|
 |

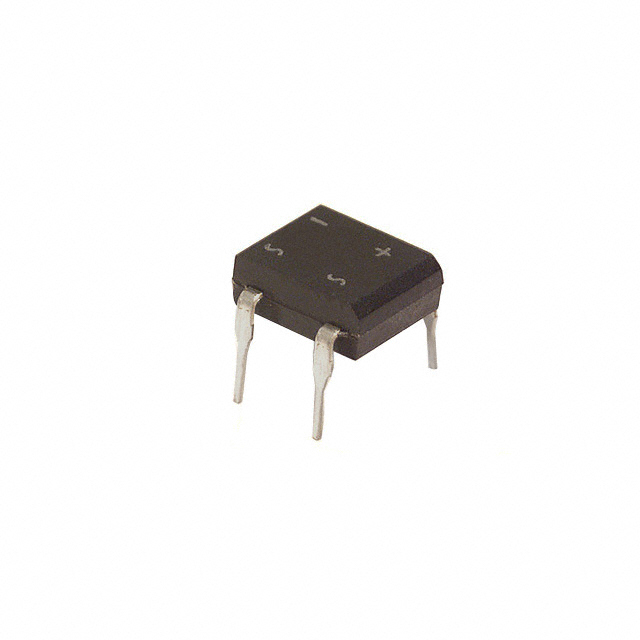

| Part Number | DB101 | DB101 | DB101 | DB101-BP |
| Manufacturer | Micro Commercial Co | JATTA | SMC Diode Solutions | Micro Commercial Co |
| RoHS Status | RoHS non-compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | BRIDGE RECT 1PHASE 50V 1A DB-1 | BRIDGE RECT 1P 600V 1.0A DB-1 | BRIDGE RECT 1PHASE 50V 1A DB-M | BRIDGE RECT 1PHASE 50V 1A DB-1 |
| Series | - | - | - | - |
| Packaging | Tube | Tape & Box (TB) | Tube | Tube |
