Product CatalogPart Number
DC025CL-M
Manufacturer
OmniOn Power™Description
DC DC CONVERTER +/-15V 25W
Datasheet
DatasheetPackage
8-DIP Module
In Stock
30,078 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
DC025CL-M
DC025CL-M
lmages are for reference only.Payment Methods
Delivery Services
Isolated Module DC DC Converter 2 Output 15V -15V 830mA, 830mA 18V - 36V Input
Quick Inquiry
DC025CL-M
Specifications
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | OmniOn Power™ |
| Series | DC025 (25W) |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 36V |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | -15V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 830mA, 830mA |
| Power (Watts) | 25 W |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OCP, OVP |
| Operating Temperature | -40°C ~ 100°C |
| Efficiency | 82% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP Module |
| Size / Dimension | 2.80" L x 2.40" W x 0.50" H (71.1mm x 61.0mm x 12.7mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active Low |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | - |
| Voltage - Isolation | 500 V |
Parts with Similar Specifications
| Product Attribute |  |
 |
|
 |

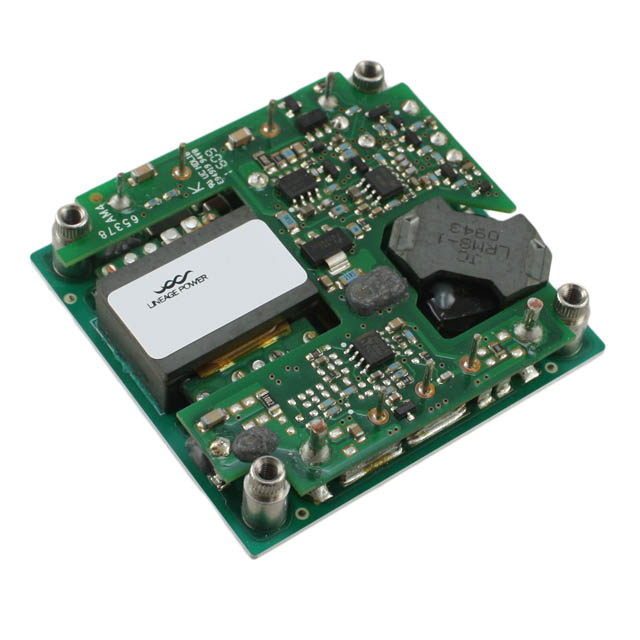

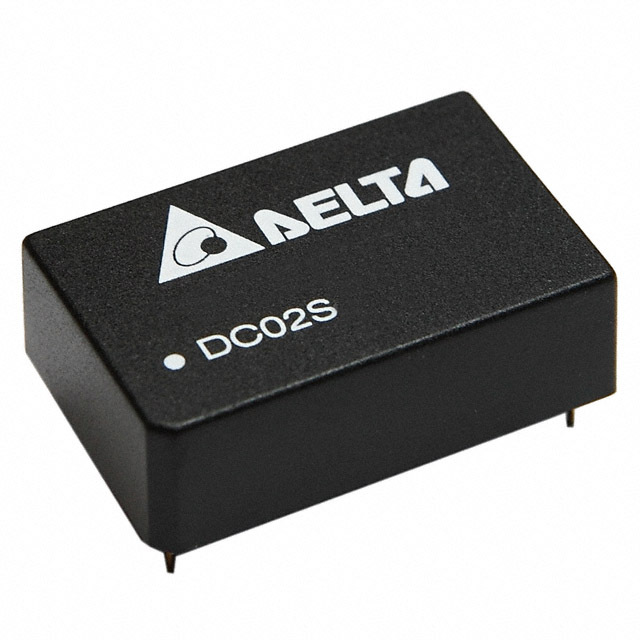

| Part Number | DC025ABK-M | DC025ACL-M | DC025AJ-M | DC02D0512A |
| Manufacturer | OmniOn Power™ | OmniOn Power™ | OmniOn Power™ | Delta Electronics |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER 5V +/-12V 25W | DC DC CONVERTER 5V +/-15V 25W | DC DC CONVERTER +/-5V 25W | DC DC CONVERTER +/-12V 2W |
| Series | OmniOn Power™ | OmniOn Power™ | OmniOn Power™ | Delta Electronics |
| Packaging | Bulk | Bulk | Bulk | Tube |
