DCMC154U6R3BH2B
lmages are for reference only.DCMC154U6R3BH2B
CAP ALUM 150000UF 6.3V SCREW CHA
DatasheetRadial, Can - Screw Terminals
69,344 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
150000 µF 6.3 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 9.9mOhm @ 120Hz 2000 Hrs @ 85°C
DCMC154U6R3BH2B
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | Cornell Dubilier Knowles |
| Series | DCMC |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 150000 µF |
| Tolerance | -10%, +75% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | 9.9mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 11.6 A @ 120 Hz |
| Ripple Current @ High Frequency | 12.992 A @ 10 kHz |
| Lead Spacing | 0.875" (22.23mm) |
| Size / Dimension | 2.000" Dia (50.80mm) |
| Height - Seated (Max) | 2.687" (68.25mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Base Product Number | - |
| Impedance | - |
| Product Attribute |  |
 |
 |
 |

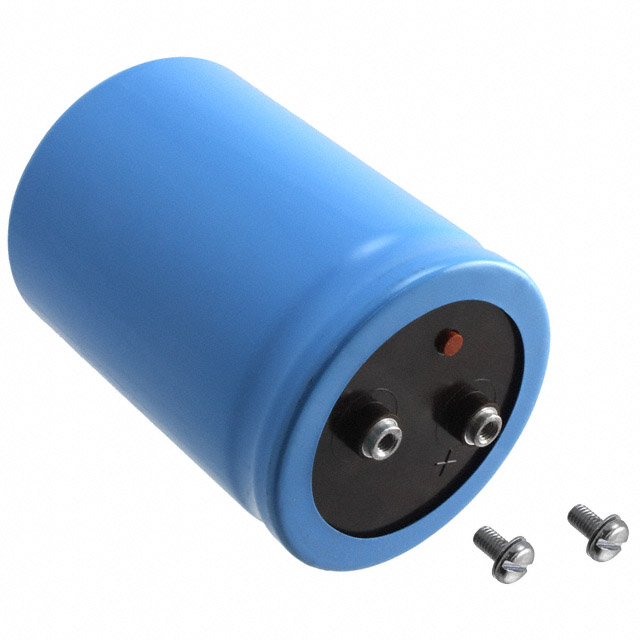

| Part Number | DCMC102M400BH5M | DCMC102T400BH5M | DCMC102T450BB2B | DCMC103M050AA2A |
| Manufacturer | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP ALUM 1000UF 20% 400V SCREW | CAP ALUM 1000UF 400V SCREW CHAS | CAP ALUM 1000UF 450V SCREW CHAS | CAP ALUM 10000UF 20% 50V SCREW |
| Series | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles |
| Packaging | Bulk | Bulk | Bulk | Bulk |
