DCMC792T500FN2D

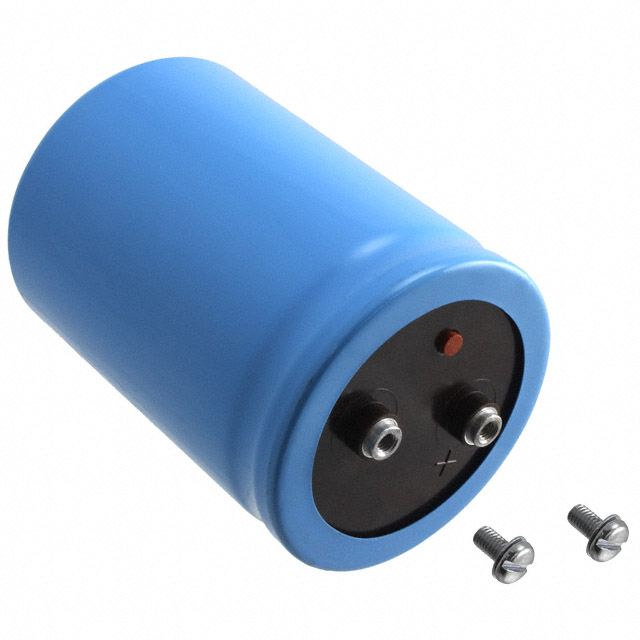

lmages are for reference only.DCMC792T500FN2D
CAP ALUM 7900UF 500V SCREW CHAS
DatasheetRadial, Can - Screw Terminals
16,734 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
7900 µF 500 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 20.5mOhm @ 120Hz 2000 Hrs @ 85°C
DCMC792T500FN2D
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | Cornell Dubilier Knowles |
| Series | DCMC |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 7900 µF |
| Tolerance | -10%, +50% |
| Voltage - Rated | 500 V |
| ESR (Equivalent Series Resistance) | 20.5mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 19.1 A @ 120 Hz |
| Ripple Current @ High Frequency | 24.257 A @ 10 kHz |
| Lead Spacing | 1.250" (31.75mm) |
| Size / Dimension | 3.500" Dia (88.90mm) |
| Height - Seated (Max) | 7.687" (195.25mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Base Product Number | - |
| Impedance | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | DCMC702M063AA2AS | DCMC702U063AA2B | DCMC723T160DG2D | DCMC742T160BB2M |
| Manufacturer | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP ALUM 7000UF 20% 63V SCREW CH | CAP ALUM 7000UF 63V SCREW CHAS M | CAP ALUM 72000UF 160V SCREW CHAS | CAP ALUM 7400UF 160V SCREW CHAS |
| Series | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles |
| Packaging | Bulk | Bulk | Bulk | Bulk |
