DCXL20DS
lmages are for reference only.DCXL20DS
SENSOR 0.72PSID 0.19" .02V
Datasheet6-SIP Module
35,342 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Pressure Sensor 0.72PSI (4.98kPa) Differential Male - 0.19" (4.83mm) Tube, Dual 0 mV ~ 20 mV (12V) 6-SIP Module
DCXL20DS
| Category | Sensors, Transducers - Pressure Sensors-Transducers - |
| Manufacturer | Honeywell Sensing and Productivity Solutions |
| Series | DCXL-DS |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Base Product Number | - |
| Applications | Board Mount |
| Pressure Type | Differential |
| Operating Pressure | 0.72PSI (4.98kPa) |
| Output Type | Wheatstone Bridge |
| Output | 0 mV ~ 20 mV (12V) |
| Accuracy | ±0.25% |
| Voltage - Supply | 3V ~ 16V |
| Port Size | Male - 0.19" (4.83mm) Tube, Dual |
| Port Style | Barbed |
| Features | Temperature Compensated |
| Termination Style | PC Pin |
| Maximum Pressure | 5PSI (34.47kPa) |
| Operating Temperature | -25°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | 6-SIP Module |
| Supplier Device Package | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

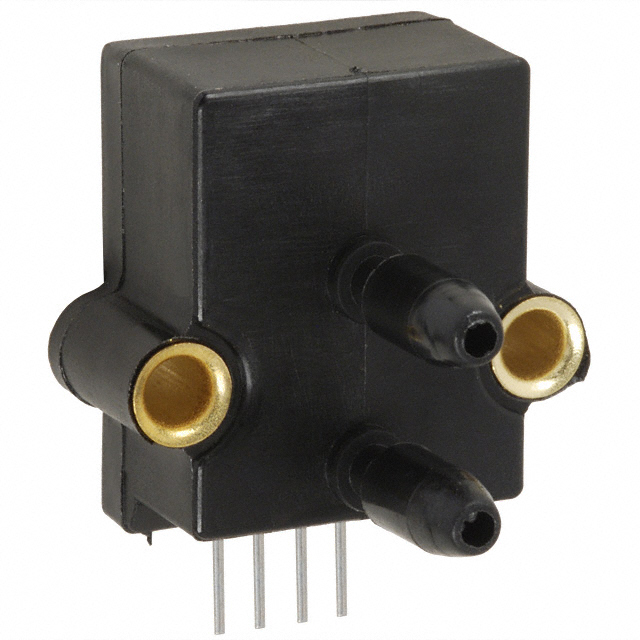

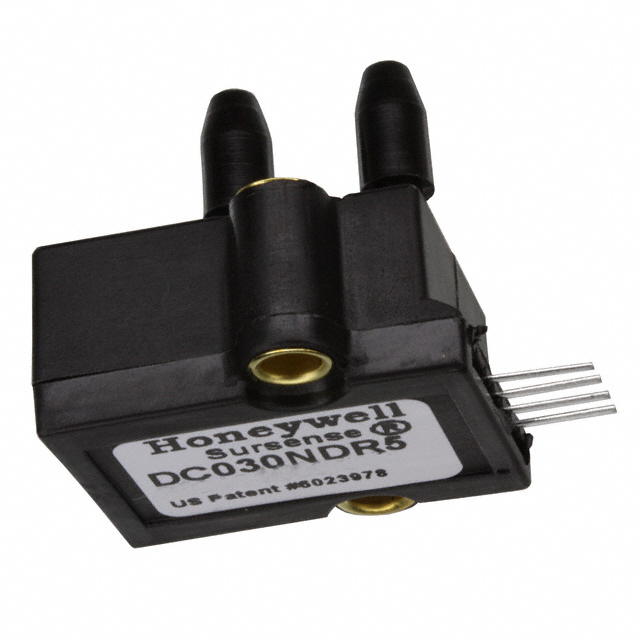

| Part Number | DC005NDC4 | DC002NDC4 | DC030NDC4 | DC030NDR5 |
| Manufacturer | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | SENSOR 0.18PSID 0.19" 4.25V | SENSOR 0.07PSID 0.19" 4.25V | SENSOR 1.08PSID 0.19" 4.25V | SENSOR 1.08PSID 0.19" 6V |
| Series | DC | DC | DC | DC |
| Packaging | Tube | Tube | Tube | Bulk |
