DDLC2R5LGN142KBF0S
lmages are for reference only.Payment Methods
Delivery Services
1400 F (EDLC) Supercapacitor 2.5 V Radial, Can - Screw Terminals 2.5mOhm 2000 Hrs @ 60°C
DDLC2R5LGN142KBF0S
| Category | Capacitors - Electric Double Layer Capacitors EDLC-Supercapacitors - |
| Manufacturer | Chemi-Con |
| Series | DLCAP™, DLC |
| Packaging | Bulk |
| RoHS Status | |
| Capacitance | 1400 F |
| Tolerance | ±10% |
| Voltage - Rated | 2.5 V |
| ESR (Equivalent Series Resistance) | 2.5mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 60°C |
| Termination | Screw Terminals |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Lead Spacing | 0.669" (17.00mm) |
| Size / Dimension | 1.575" Dia (40.00mm) |
| Height - Seated (Max) | 6.063" (154.00mm) |
| Operating Temperature | -25°C ~ 60°C |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

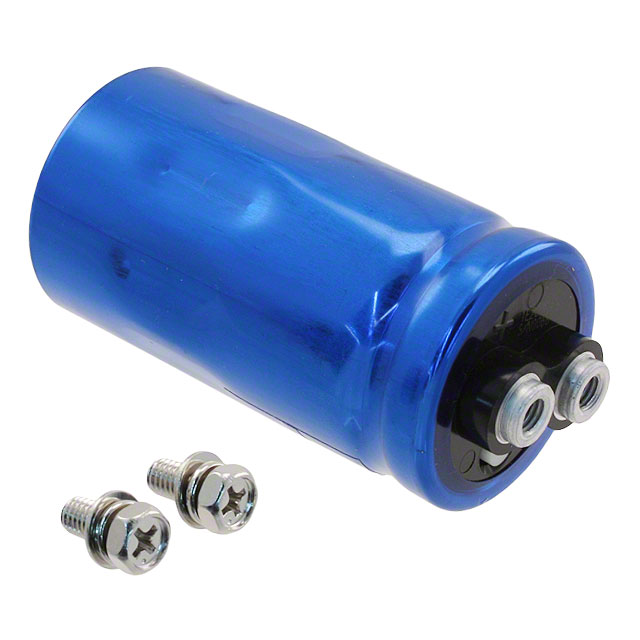

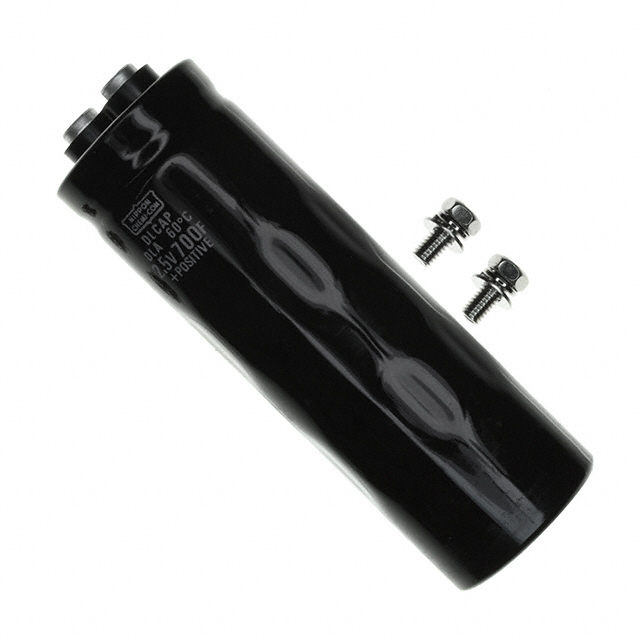

| Part Number | DDLA2R5LGN701KAA5S | DDLC2R5LGN351KA65S | EEC-HW0D226 | EEC-RG0V224VN |
| Manufacturer | Chemi-Con | Chemi-Con | Panasonic Electronic Components | Panasonic Electronic Components |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | |
| Description | CAP 700F 10% 2.5V CHASSIS MOUNT | CAP 350F 10% 2.5V CHASSIS MOUNT | CAP 22F -20% +40% 2.3V T/H | CAP 220MF -20% +80% 3.6V T/H |
| Series | DLCAP™, DLA | DLCAP™, DLC | HW | RG |
| Packaging | Bulk | Bulk | Bulk | Bulk |
