DG3157EDL-T1-GE3
lmages are for reference only.DG3157EDL-T1-GE3
IC SWITCH SPDT X 1 9OHM SC70-6
Datasheet6-TSSOP, SC-88, SOT-363
96,619 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1 Circuit IC Switch 2:1 9Ohm SC-70-6
DG3157EDL-T1-GE3
| Category | Integrated Circuits (ICs) - Interface - Analog Switches-Multiplexers-Demultiplexers |
| Manufacturer | Vishay Siliconix |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 9Ohm |
| Channel-to-Channel Matching (ΔRon) | 90mOhm |
| Voltage - Supply, Single (V+) | 1.65V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | - |
| -3db Bandwidth | 580MHz |
| Charge Injection | 1.3pC |
| Channel Capacitance (CS(off), CD(off)) | - |
| Current - Leakage (IS(off)) (Max) | 100nA |
| Crosstalk | -61dB @ 10MHz |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Supplier Device Package | SC-70-6 |
| Base Product Number | DG3157 |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
|
 |

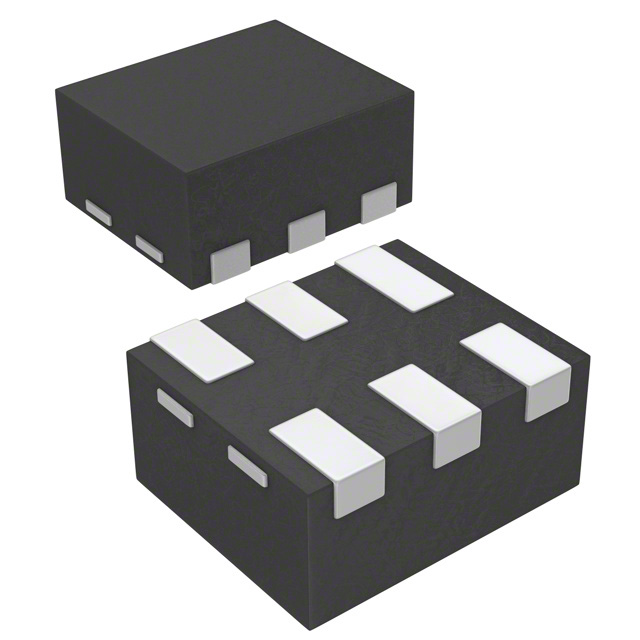

| Part Number | DG3157EDL-T1-GE3 | DG3157ADN-T1-E4 | DG3157ADN-T1-E4 | DG3157BDN-T1-E4 |
| Manufacturer | Vishay Siliconix | Vishay Siliconix | Vishay Siliconix | Vishay Siliconix |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC SWITCH SPDT X 1 9OHM SC70-6 | IC SWITCH SPDTX1 15OHM 6MINIQFN | IC SWITCH SPDTX1 15OHM 6MINIQFN | IC SWITCH SPDTX1 15OHM 6MINIQFN |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
