Product CatalogPart Number
DHP 610
Manufacturer
Knitter-SwitchDescription
DUAL-IN-LINE SWITCH, HALF-PITCH-
Datasheet
DatasheetPackage
-
In Stock
41,435 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
DHP 610
DHP 610
lmages are for reference only.Payment Methods
Delivery Services
Dip Switch SPST 10 Position Surface Mount, Right Angle Piano Actuator 25mA 24VDC
Quick Inquiry
DHP 610
Specifications
| Category | Switches - DIP Switches - |
| Manufacturer | Knitter-Switch |
| Series | DHP 600 |
| Packaging | Tube |
| RoHS Status | |
| Circuit | SPST |
| Number of Positions | 10 |
| Current Rating (Amps) | 25mA |
| Voltage Rating | 24VDC |
| Actuator Type | Piano |
| Actuator Level | Raised |
| Contact Material | Copper Alloy |
| Contact Finish | Gold |
| Height Above Board | 0.165" (4.20mm) |
| Mounting Type | Surface Mount, Right Angle |
| Termination Style | Gull Wing |
| Pitch | 0.050" (1.27mm), Half |
| Washable | No |
| Features | - |
| Operating Temperature | -25°C ~ 70°C |
| Body Material | Polyamide (PA), Nylon |
| Length | 0.545" (13.84mm) |
| Mechanical Life | 1,000 Cycles |
| Electrical Life | - |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

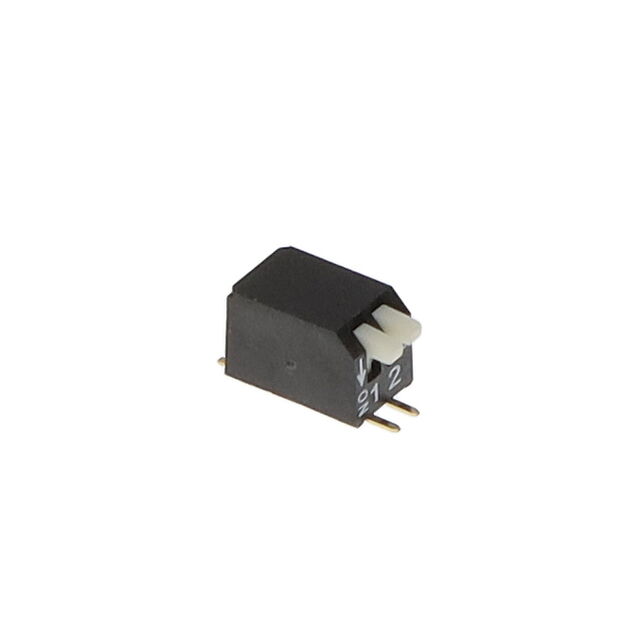

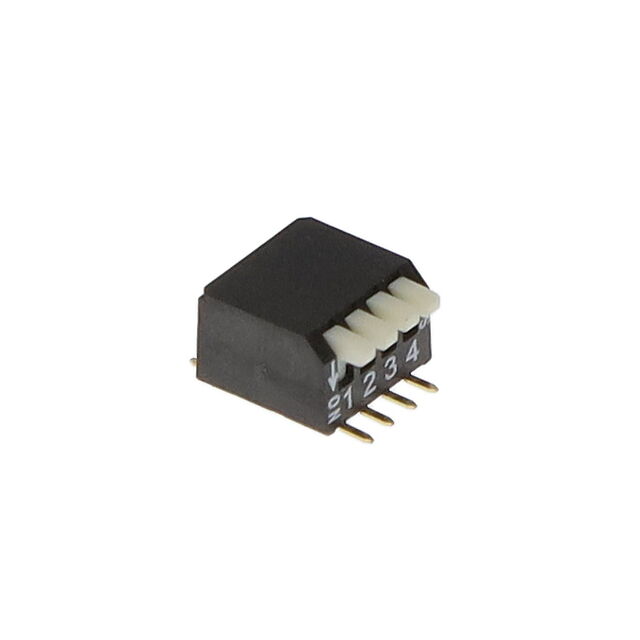

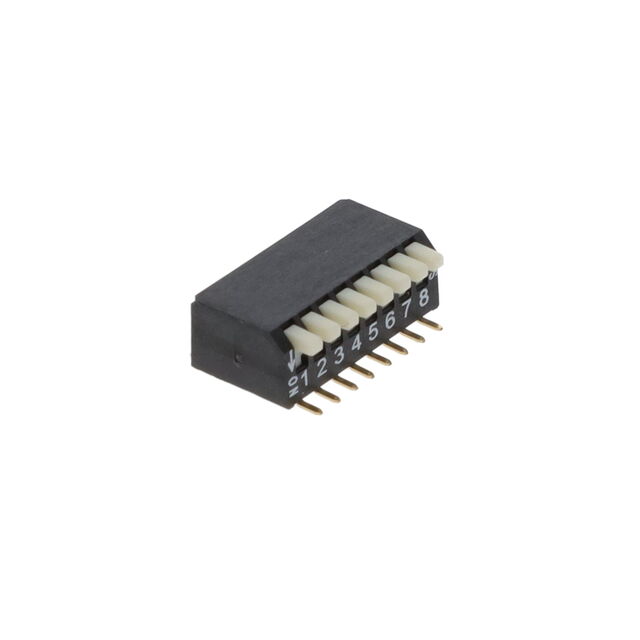

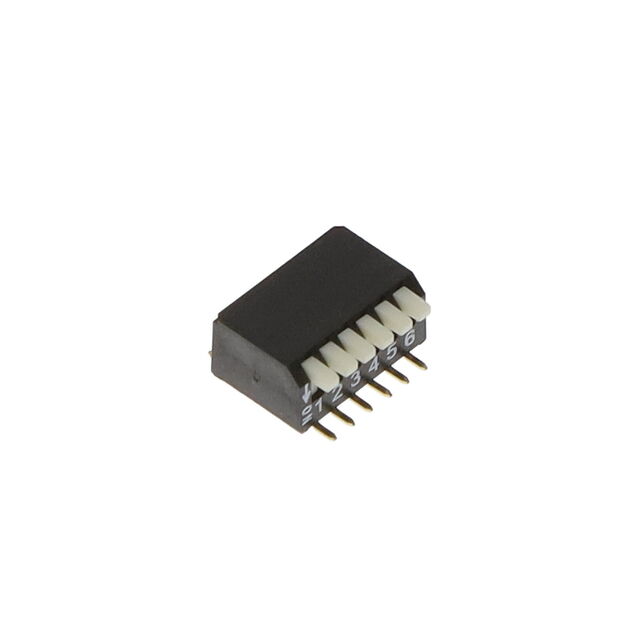

| Part Number | DHP 602 | DHP 604 | DHP 606 | DHP 608 |
| Manufacturer | Knitter-Switch | Knitter-Switch | Knitter-Switch | Knitter-Switch |
| RoHS Status | ||||
| Description | DUAL-IN-LINE SWITCH, HALF-PITCH- | DUAL-IN-LINE SWITCH, HALF-PITCH- | DUAL-IN-LINE SWITCH, HALF-PITCH- | DUAL-IN-LINE SWITCH, HALF-PITCH- |
| Series | DHP 600 | DHP 600 | DHP 600 | DHP 600 |
| Packaging | Tube | Tube | Tube | Tube |
