DI080N06PQ-AQ

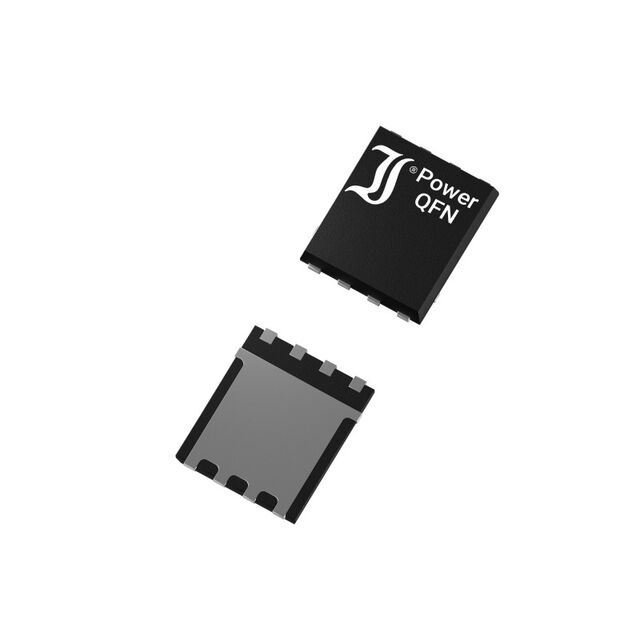

lmages are for reference only.DI080N06PQ-AQ
MOSFET POWERQFN 5X6 N 65V 105A 0
Datasheet8-PowerTDFN
12,567 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 65 V 80A (Tc) 80W (Tc) Surface Mount 8-QFN (5x6)
DI080N06PQ-AQ
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Diotec Semiconductor |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | Not applicable |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 65 V |
| Current - Continuous Drain (Id) @ 25°C | 80A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 4mOhm @ 30A, 10V |
| Vgs(th) (Max) @ Id | 3V @ 250µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 4128 pF @ 30 V |
| FET Feature | - |
| Power Dissipation (Max) | 80W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-QFN (5x6) |
| Package / Case | 8-PowerTDFN |
| Base Product Number | DI080N06 |
| Gate Charge (Qg) (Max) @ Vgs | 56 nC @ 10 V |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
 |
 |
 |
| Part Number | DI080N03PQ | DI080N06PQ | DI001N65PTK | DI001N65PTK-AQ |
| Manufacturer | Diotec Semiconductor | Diotec Semiconductor | Diotec Semiconductor | Diotec Semiconductor |
| RoHS Status | ROHS3 Compliant | |||
| Description | MOSFET POWERQFN 5X6 N 30V | MOSFET POWERQFN 5X6 N 65V | MOSFET POWERQFN 3X3 N 650V | MOSFET POWERQFN 3X3 N 650V |
| Series | - | - | - | - |
| Packaging | Bulk | Tape & Reel (TR)-->Cut Tape (CT) | Bulk | Bulk |
