Product CatalogPart Number
DI145N04PQ-AQ
Manufacturer
Diotec SemiconductorDescription
MOSFET POWERQFN 5X6 N 40V
Datasheet
DatasheetPackage
8-PowerTDFN
In Stock
68,994 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
DI145N04PQ-AQ
DI145N04PQ-AQ
lmages are for reference only.Payment Methods
Delivery Services
N-Channel 40 V 145A (Tc) 75W (Tc) Surface Mount 8-QFN (5x6)
Quick Inquiry
DI145N04PQ-AQ
Specifications
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Diotec Semiconductor |
| Series | - |
| Packaging | Bulk |
| RoHS Status | |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 40 V |
| Current - Continuous Drain (Id) @ 25°C | 145A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 1.5mOhm @ 90A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 7000 pF @ 20 V |
| FET Feature | - |
| Power Dissipation (Max) | 75W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-QFN (5x6) |
| Package / Case | 8-PowerTDFN |
| Base Product Number | - |
| Gate Charge (Qg) (Max) @ Vgs | 115 nC @ 10 V |
| Grade | Automotive |
| Qualification | AEC-Q101 |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

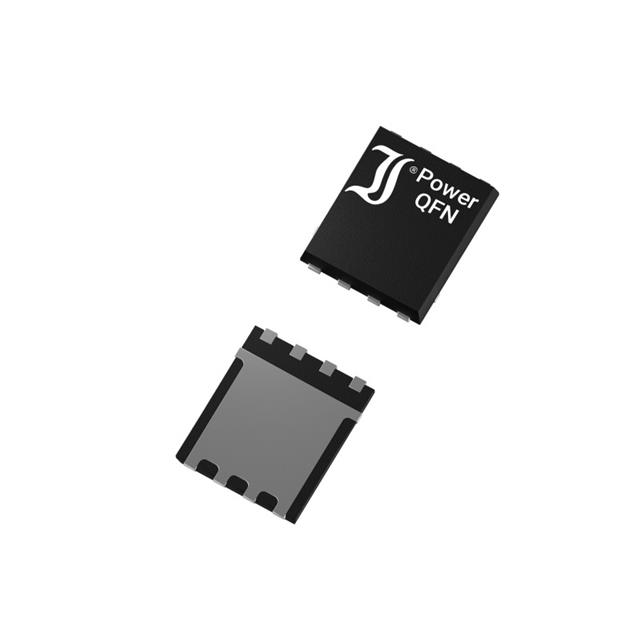

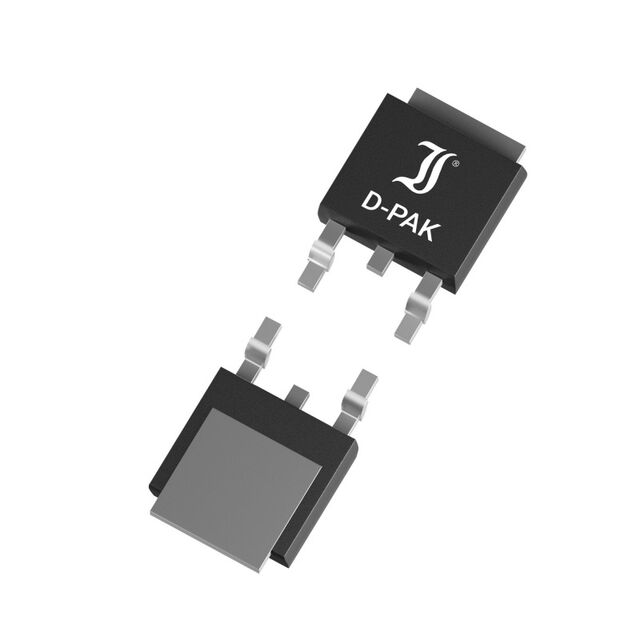

| Part Number | DI100N04D1 | DI100N04D1-AQ | DI100N04PQ-AQ | DI100N10PQ |
| Manufacturer | Diotec Semiconductor | Diotec Semiconductor | Diotec Semiconductor | Diotec Semiconductor |
| RoHS Status | Not applicable | Not applicable | ROHS3 Compliant | |
| Description | MOSFET DPAK N 40V 100A | MOSFET, DPAK, 40V, 100A, 0, 69W | MOSFET PWRQFN 5X6 40V 0.0021OHM | MOSFET PWRQFN 5X6 100V 0.0045OHM |
| Series | - | - | - | - |
| Packaging | Bulk | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
