DKFP-D22D-D839
lmages are for reference only.DKFP-D22D-D839
DKFP COMP.CHOKE THT P O 0.8A 2X3
DatasheetHorizontal, 4 PC Pin
84,582 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
2 Line Common Mode Choke Through Hole 800mA DCR 955mOhm (Typ)
DKFP-D22D-D839
| Category | Filters - Common Mode Chokes - |
| Manufacturer | SCHURTER Inc. |
| Series | DKFP |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Filter Type | Power Line |
| Number of Lines | 2 |
| Inductance @ Frequency | - |
| Current Rating (Max) | 800mA |
| DC Resistance (DCR) (Max) | 955mOhm (Typ) |
| Voltage Rating - DC | - |
| Voltage Rating - AC | 250V |
| Operating Temperature | -40°C ~ 125°C |
| Ratings | - |
| Approval Agency | cURus |
| Features | - |
| Mounting Type | Through Hole |
| Size / Dimension | 1.142" L x 1.102" W (29.00mm x 28.00mm) |
| Height (Max) | 0.669" (17.00mm) |
| Package / Case | Horizontal, 4 PC Pin |
| Base Product Number | - |
| Impedance @ Frequency | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | DKFP-D22D-D647 | DKFP-D22D-0127 | DKFP-D22D-0210 | DKFP-D22D-034K |
| Manufacturer | SCHURTER Inc. | SCHURTER Inc. | SCHURTER Inc. | SCHURTER Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DKFP COMP.CHOKE THT P O 0.6A 2X4 | DKFP COMP.CHOKE THT P O 1A 2X27M | DKFP COMP.CHOKE THT P O 2A 2X10M | DKFP COMP.CHOKE THT P O 3A 2X4.2 |
| Series | DKFP | DKFP | DKFP | DKFP |
| Packaging | Bulk | Bulk | Bulk | Bulk |

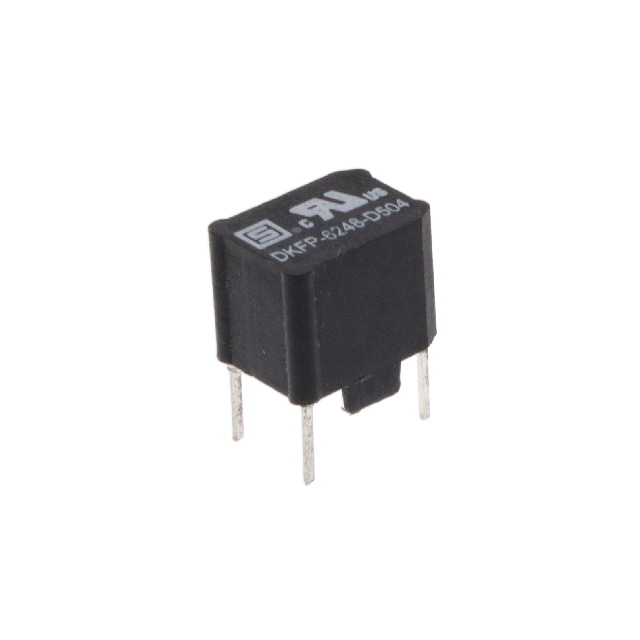

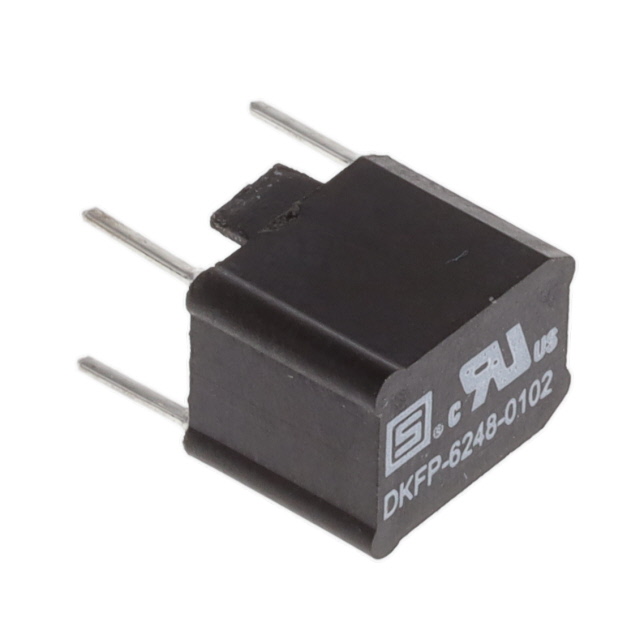

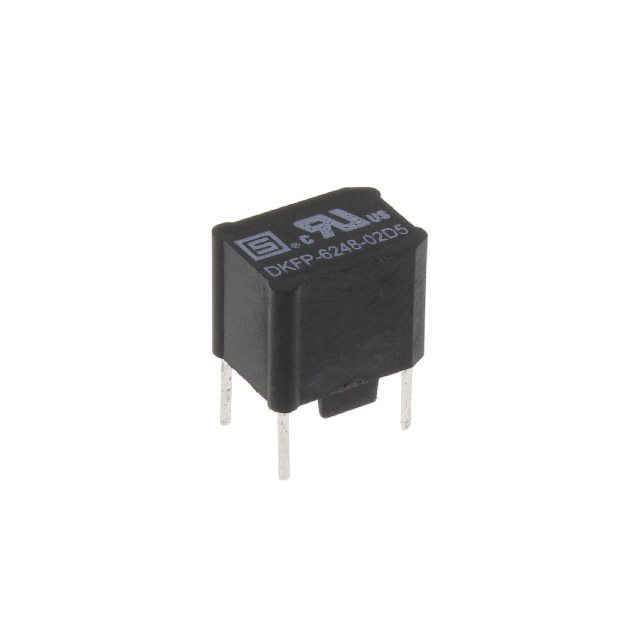

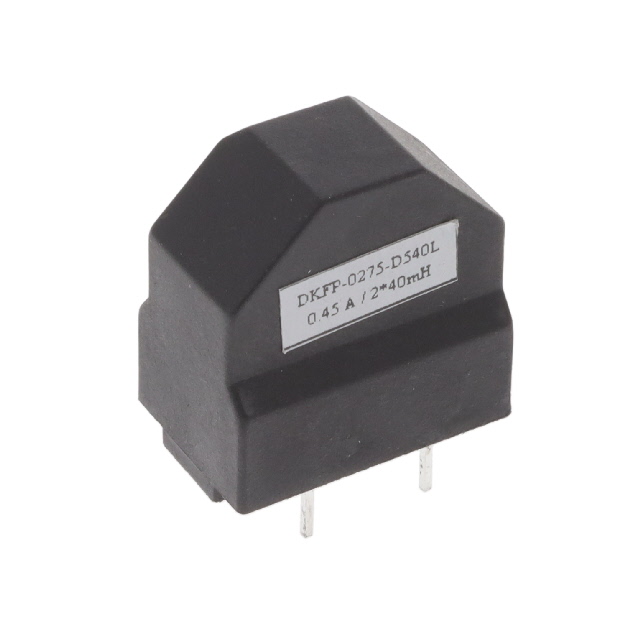

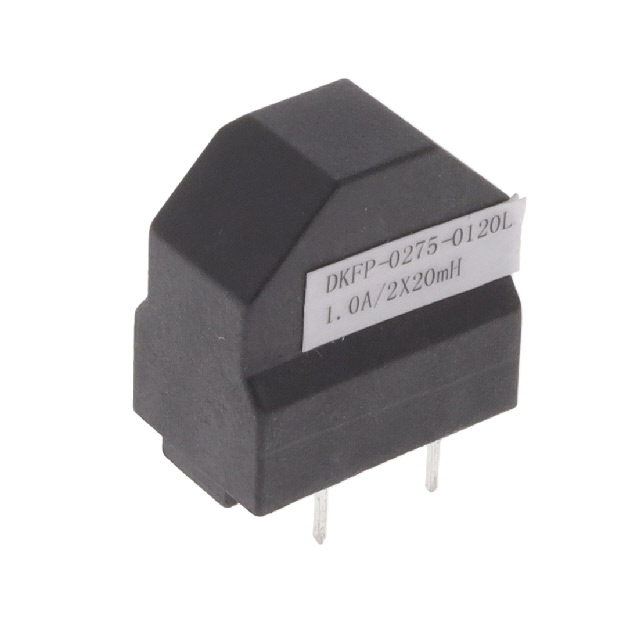

Recommended Products
