DKFP-G22G-0147
lmages are for reference only.DKFP-G22G-0147
DKFP COMP.CHOKE THT P O 1A 2X47M
DatasheetHorizontal, 4 PC Pin
27,802 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
2 Line Common Mode Choke Through Hole 1A DCR 950mOhm (Typ)
DKFP-G22G-0147
| Category | Filters - Common Mode Chokes - |
| Manufacturer | SCHURTER Inc. |
| Series | DKFP |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Filter Type | Power Line |
| Number of Lines | 2 |
| Inductance @ Frequency | - |
| Current Rating (Max) | 1A |
| DC Resistance (DCR) (Max) | 950mOhm (Typ) |
| Voltage Rating - DC | - |
| Voltage Rating - AC | 250V |
| Operating Temperature | -40°C ~ 125°C |
| Ratings | - |
| Approval Agency | cURus |
| Features | - |
| Mounting Type | Through Hole |
| Size / Dimension | 1.339" L x 1.299" W (34.00mm x 33.00mm) |
| Height (Max) | 0.768" (19.50mm) |
| Package / Case | Horizontal, 4 PC Pin |
| Base Product Number | - |
| Impedance @ Frequency | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | DKFP-G22G-0210 | DKFP-G22G-043R | DKFP-G22G-061Q | DKFP-G22G-D5J0 |
| Manufacturer | SCHURTER Inc. | SCHURTER Inc. | SCHURTER Inc. | SCHURTER Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

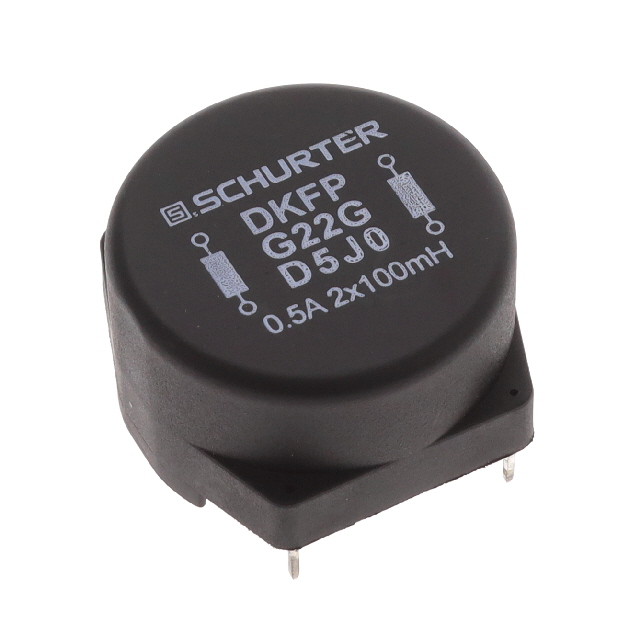

| Description | DKFP COMP.CHOKE THT P O 2A 2X10M | DKFP COMP.CHOKE THT P O 4A 2X3.9 | DKFP COMP.CHOKE THT P O 6A 2X1.8 | CMC 500MA 2LN TH |
| Series | DKFP | DKFP | DKFP | DKFP |
| Packaging | Bulk | Bulk | Bulk | Bulk |
