DL5223B-TP

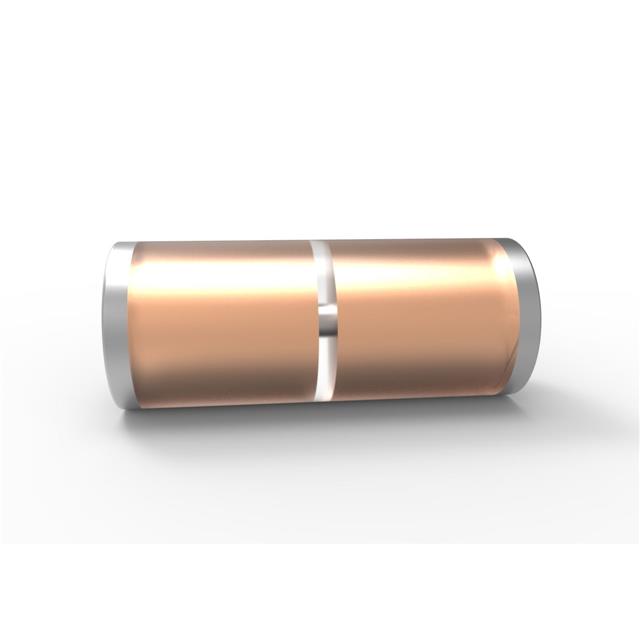

lmages are for reference only.DL5223B-TP
DIODE ZENER 2.7V 500MW MINI MELF
DatasheetDO-213AC, MINI-MELF, SOD-80
42,683 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Zener Diode 2.7 V 500 mW ±5% Surface Mount Mini MELF
DL5223B-TP
| Category | Discrete Semiconductor Products - Diodes - Zener |
| Manufacturer | Micro Commercial Co |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Voltage - Zener (Nom) (Vz) | 2.7 V |
| Tolerance | ±5% |
| Power - Max | 500 mW |
| Impedance (Max) (Zzt) | 30 Ohms |
| Current - Reverse Leakage @ Vr | 75 µA @ 1 V |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 200 mA |
| Operating Temperature | -65°C ~ 175°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | DO-213AC, MINI-MELF, SOD-80 |
| Supplier Device Package | Mini MELF |
| Base Product Number | DL5223 |
| Product Attribute |  |
 |
 |
 |
| Part Number | DL5221B-TP | DL5222B-TP | DL5225B-TP | DL5226B-TP |
| Manufacturer | Micro Commercial Co | Micro Commercial Co | Micro Commercial Co | Micro Commercial Co |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DIODE ZENER 2.4V 500MW MINI MELF | DIODE ZENER 2.5V 500MW MINI MELF | DIODE ZENER 3V 500MW MINI MELF | DIODE ZENER 3.3V 500MW MINI MELF |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
