DLLR-L10D-E1BD-C-NAV6
lmages are for reference only.DLLR-L10D-E1BD-C-NAV6
SENSOR 0.36PSID 0.09" 16BIT 8DIP
Datasheet8-DIP (0.620", 15.75mm), Dual Ports, Same Side
14,845 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Pressure Sensor ±0.36PSI (±2.49kPa) Differential Male - 0.09" (2.24mm) Tube, Dual 16b 8-DIP (0.620", 15.75mm), Dual Ports, Same Side
DLLR-L10D-E1BD-C-NAV6
| Category | Sensors, Transducers - Pressure Sensors-Transducers - |
| Manufacturer | Amphenol All Sensors Corporation |
| Series | DLLR |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Base Product Number | DLLR-L10D |
| Applications | - |
| Pressure Type | Differential |
| Operating Pressure | ±0.36PSI (±2.49kPa) |
| Output Type | I2C, SPI |
| Output | 16b |
| Accuracy | ±0.1% |
| Voltage - Supply | 1.68V ~ 3.6V |
| Port Size | Male - 0.09" (2.24mm) Tube, Dual |
| Port Style | Barbed |
| Features | Temperature Compensated |
| Termination Style | PC Pin |
| Maximum Pressure | 3.63PSI (25kPa) |
| Operating Temperature | -25°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.620", 15.75mm), Dual Ports, Same Side |
| Supplier Device Package | 8-DIP |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
|
 |

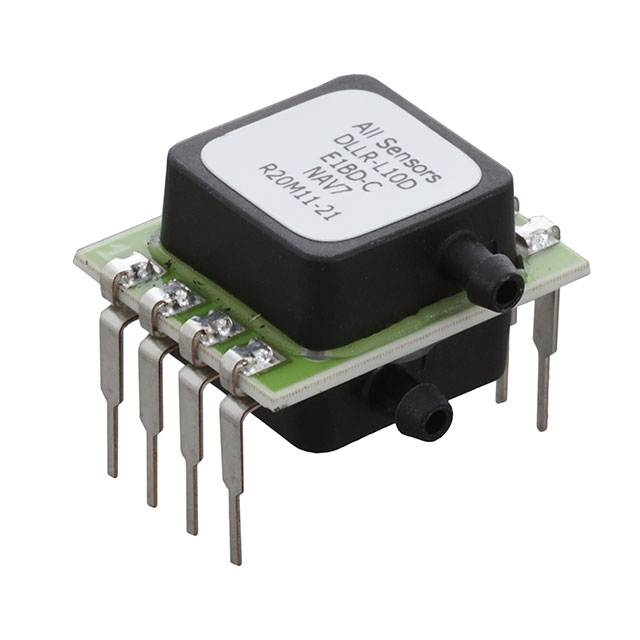

| Part Number | DLLR-L10D-E1BD-C-NAV7 | DLLR-L10D-E1BD-C-NAV8 | DLLR-L10D-E1BD-C-NAV8 | DLLR-L10G-E1BD-C-NAV6 |
| Manufacturer | Amphenol All Sensors Corporation | Amphenol All Sensors Corporation | Amphenol All Sensors Corporation | Amphenol All Sensors Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | RoHS Compliant |
| Description | SENSOR 0.36PSID 0.09" 17BIT 8DIP | SENSOR 0.36PSID 0.09" 18BIT 8DIP | SENSOR 0.36PSID 0.09" 18BIT 8DIP | SENSOR 0.36PSID 0.09" 16BIT 8DIP |
| Series | DLLR | DLLR | DLLR | DLLR |
| Packaging | Bulk | Bulk | Bulk | Bulk |
