DM74AS804BN
lmages are for reference only.DM74AS804BN
IC GATE NAND 6CH 2-INP 20DIP
Datasheet20-DIP (0.300", 7.62mm)
80,263 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
NAND Gate IC 6 Channel 20-PDIP
DM74AS804BN
| Category | Integrated Circuits (ICs) - Logic - Gates and Inverters |
| Manufacturer | Fairchild Semiconductor |
| Series | 74AS |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Base Product Number | 74AS804 |
| Logic Type | NAND Gate |
| Number of Circuits | 6 |
| Number of Inputs | 2 |
| Features | - |
| Voltage - Supply | 4.5V ~ 5.5V |
| Current - Quiescent (Max) | - |
| Current - Output High, Low | 48mA, 48mA |
| Input Logic Level - Low | 0.8V |
| Input Logic Level - High | 2V |
| Max Propagation Delay @ V, Max CL | 4ns @ 5V, 50pF |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Through Hole |
| Supplier Device Package | 20-PDIP |
| Package / Case | 20-DIP (0.300", 7.62mm) |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
 |
 |

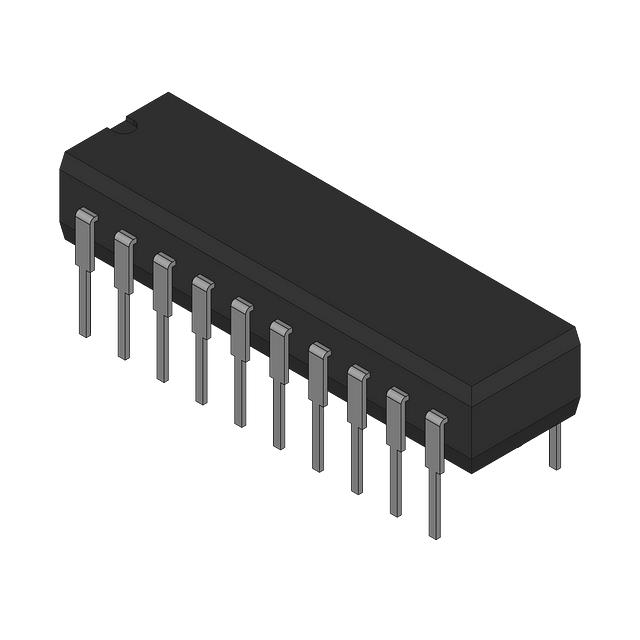

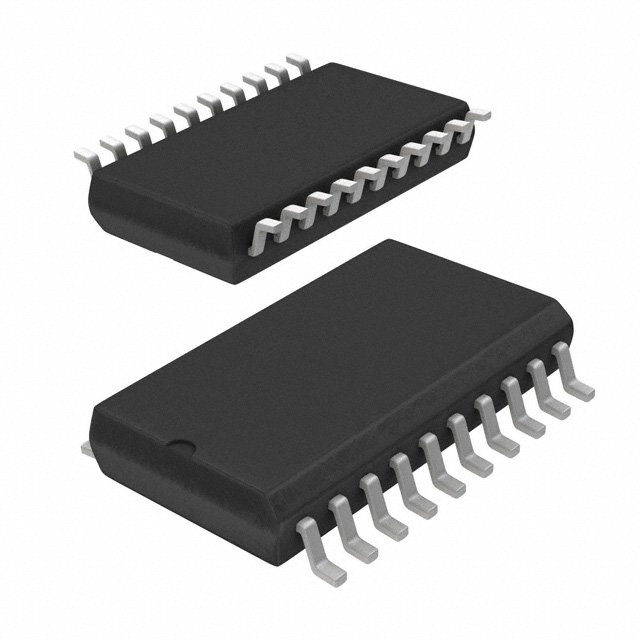

| Part Number | DM74AS804BN | DM74AS804BWM | DM74AS805BN | DM74AS805BWM |
| Manufacturer | onsemi | onsemi | Fairchild Semiconductor | onsemi |
| RoHS Status | ROHS3 Compliant | |||
| Description | IC GATE NAND 6CH 2-INP 20DIP | IC GATE NAND 6CH 2-INP 20SOIC | IC GATE NOR 6CH 2-INP 20DIP | IC GATE NOR 6CH 2-INP 20SOIC |
| Series | 74AS | 74AS | 74AS | 74AS |
| Packaging | Tube | Tube | Tube | Tube |
