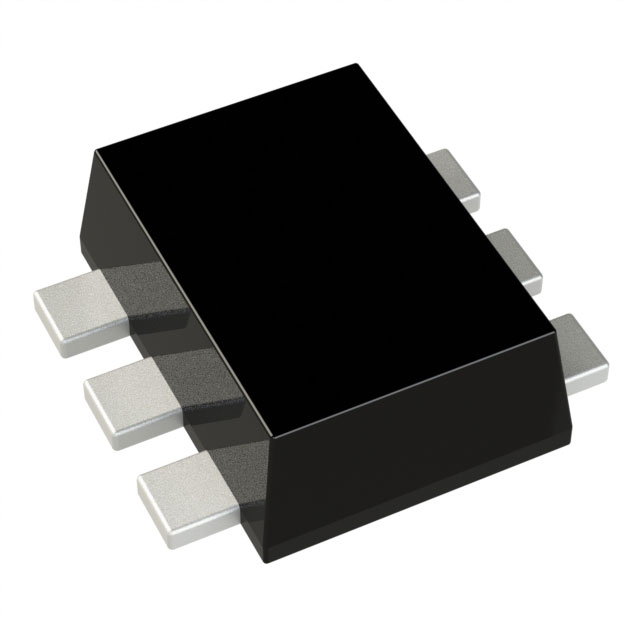

DMC2710UV-7
lmages are for reference only.DMC2710UV-7
MOSFET N/P-CH 20V 1.1A SOT563
DatasheetSOT-563, SOT-666
90,674 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Mosfet Array 20V 1.1A (Ta), 800mA (Ta) 460mW (Ta) Surface Mount SOT-563
DMC2710UV-7
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Diodes Incorporated |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Technology | MOSFET (Metal Oxide) |
| Configuration | N and P-Channel Complementary |
| FET Feature | - |
| Drain to Source Voltage (Vdss) | 20V |
| Current - Continuous Drain (Id) @ 25°C | 1.1A (Ta), 800mA (Ta) |
| Rds On (Max) @ Id, Vgs | 400mOhm @ 600mA, 4.5V, 700mOhm @ 430mA, 4.5V |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 0.6nC @ 4.5V, 0.7nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 42pF @ 16V, 49pF @ 16V |
| Power - Max | 460mW (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SOT-563, SOT-666 |
| Supplier Device Package | SOT-563 |
| Base Product Number | DMC2710 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | DMC2710UV-13 | DMC2710UDW-13 | DMC2710UDW-7 | DMC2710UDWQ-13 |
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MOSFET N/P-CH 20V 1.1A SOT563 | MOSFET N/P-CH 20V 0.75A SOT363 | MOSFET N/P-CH 20V 0.75A SOT363 | MOSFET N/P-CH 20V 0.75A SOT363 |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
