DMNH6021SPS-13

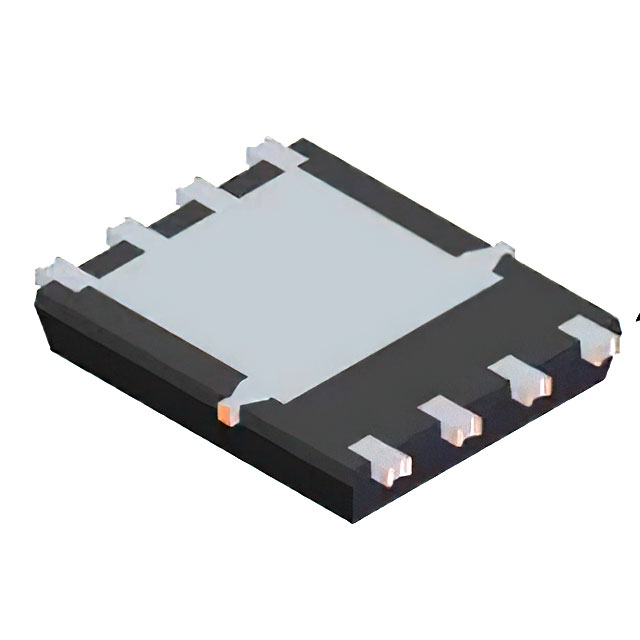

lmages are for reference only.DMNH6021SPS-13
MOSFET N-CH 60V 55A PWRDI5060-8
Datasheet8-PowerTDFN
75,247 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 60 V 55A (Tc) 1.6W (Ta), 53W (Tc) Surface Mount PowerDI5060-8
DMNH6021SPS-13
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Diodes Incorporated |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V |
| Current - Continuous Drain (Id) @ 25°C | 55A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 23mOhm @ 12A, 10V |
| Vgs(th) (Max) @ Id | 3V @ 250µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1016 pF @ 30 V |
| FET Feature | - |
| Power Dissipation (Max) | 1.6W (Ta), 53W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PowerDI5060-8 |
| Package / Case | 8-PowerTDFN |
| Base Product Number | DMNH6021 |
| Gate Charge (Qg) (Max) @ Vgs | 19.7 nC @ 10 V |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
 |
|
 |
| Part Number | DMNH6021SPSQ-13 | DMNH6021SPSW-13 | DMNH6021SPSWQ-13 | DMNH6021SK3-13 |
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MOSFET N-CH 60V 55A PWRDI5060-8 | MOSFET BVDSS: 41V~60V POWERDI506 | MOSFET BVDSS: 41V~60V POWERDI506 | MOSFET N-CH 60V 50A TO252 |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
