Product CatalogPart Number
DMT4004LPS-13
Manufacturer
Diodes IncorporatedDescription
MOSFET N-CH 40V 26A PWRDI5060
Datasheet
DatasheetPackage
8-PowerTDFN
In Stock
31,462 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
DMT4004LPS-13
DMT4004LPS-13
lmages are for reference only.Payment Methods
Delivery Services
N-Channel 40 V 26A (Ta), 90A (Tc) 2.6W (Ta), 138W (Tc) Surface Mount PowerDI5060-8
Quick Inquiry
DMT4004LPS-13
Specifications
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Diodes Incorporated |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 40 V |
| Current - Continuous Drain (Id) @ 25°C | 26A (Ta), 90A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 2.5mOhm @ 50A, 10V |
| Vgs(th) (Max) @ Id | 3V @ 250µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 4508 pF @ 20 V |
| FET Feature | - |
| Power Dissipation (Max) | 2.6W (Ta), 138W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PowerDI5060-8 |
| Package / Case | 8-PowerTDFN |
| Base Product Number | DMT4004 |
| Gate Charge (Qg) (Max) @ Vgs | 82.2 nC @ 10 V |
| Grade | Automotive |
| Qualification | AEC-Q101 |
Parts with Similar Specifications
| Product Attribute |  |
|
 |
 |
| Part Number | DMT10H003SPSW-13 | DMT10H009LCG-7 | DMT10H009LFG-13 | DMT10H009LFG-7 |
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MOSFET BVDSS: 61V~100V POWERDI50 | MOSFET N-CH 100V 12.4A/47A 8DFN | MOSFET N-CH 100V 13A/50A PWRDI | MOSFET N-CH 100V 13A/50A PWRDI |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) |
Customers Also Interested in
Recommended Products
DMT4001LPS-13
Diodes Incorporated

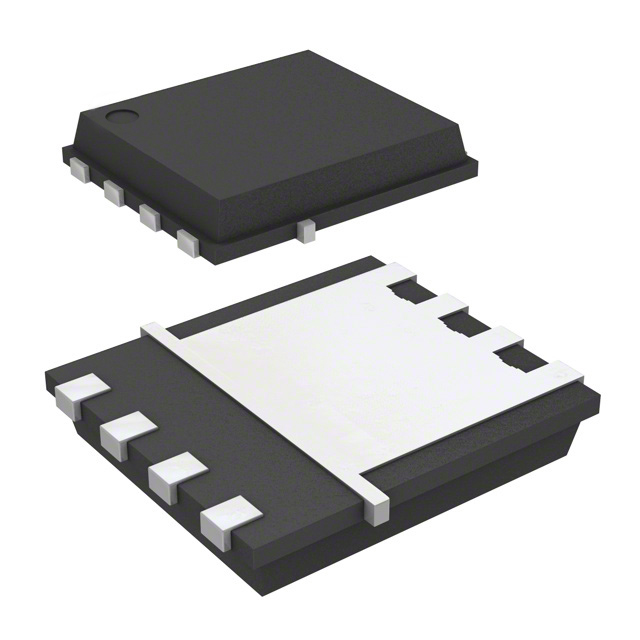

DMT4002LPS-13
Diodes Incorporated
DMT4003SCT
Diodes Incorporated
DMT4005SCT
Diodes Incorporated

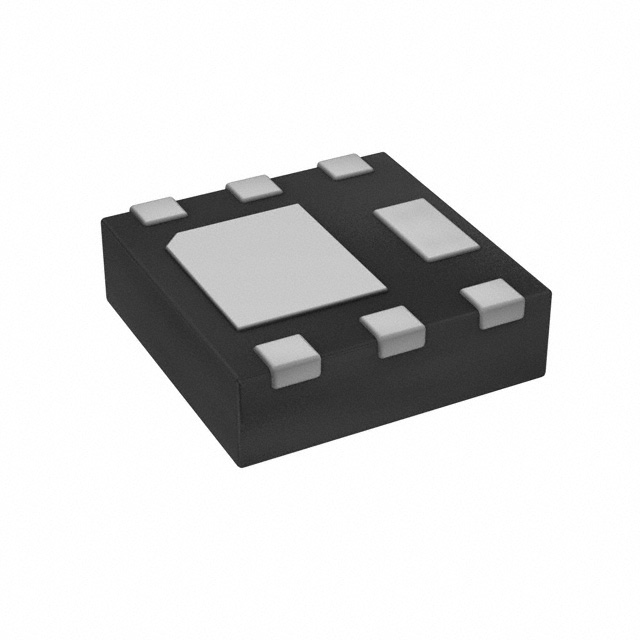

DMT4008LFDF-13
Diodes Incorporated
DMT4008LFDF-7
Diodes Incorporated
DMT4008LFV-13
Diodes Incorporated

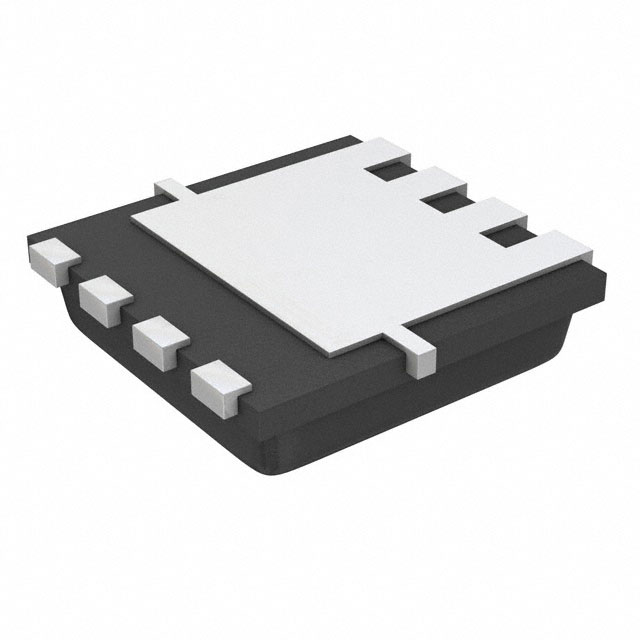

DMT4008LFV-7
Diodes Incorporated
DMT4008LSS-13
Diodes Incorporated
DMT4011LFG-13
Diodes Incorporated

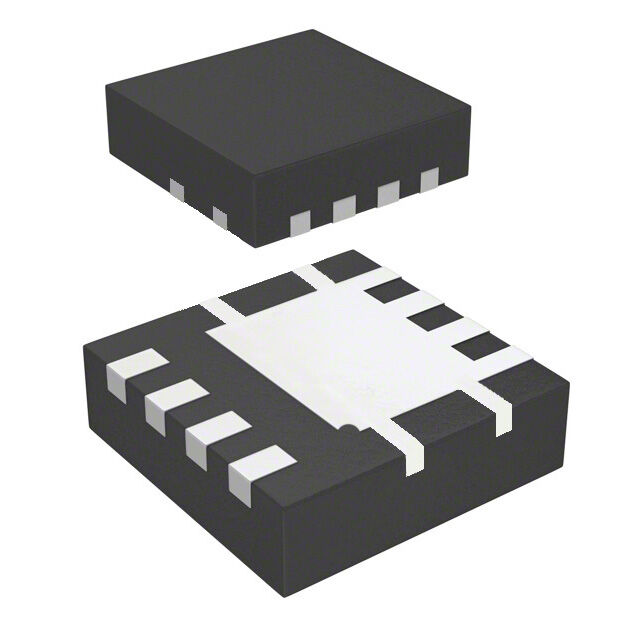

DMT4011LFG-7
