DPG30C300PC-TRL
lmages are for reference only.Payment Methods
Delivery Services
Diode Array 1 Pair Common Cathode 300 V 15A Surface Mount TO-263-3, D2PAK (2 Leads + Tab), TO-263AB
DPG30C300PC-TRL
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | IXYS |
| Series | HiPerFRED²™ |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Diode Configuration | 1 Pair Common Cathode |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 300 V |
| Current - Average Rectified (Io) (per Diode) | 15A |
| Voltage - Forward (Vf) (Max) @ If | 1.26 V @ 15 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Current - Reverse Leakage @ Vr | 1 µA @ 300 V |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB |
| Supplier Device Package | TO-263AA |
| Base Product Number | DPG30C300 |
| Reverse Recovery Time (trr) | 35 ns |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
|

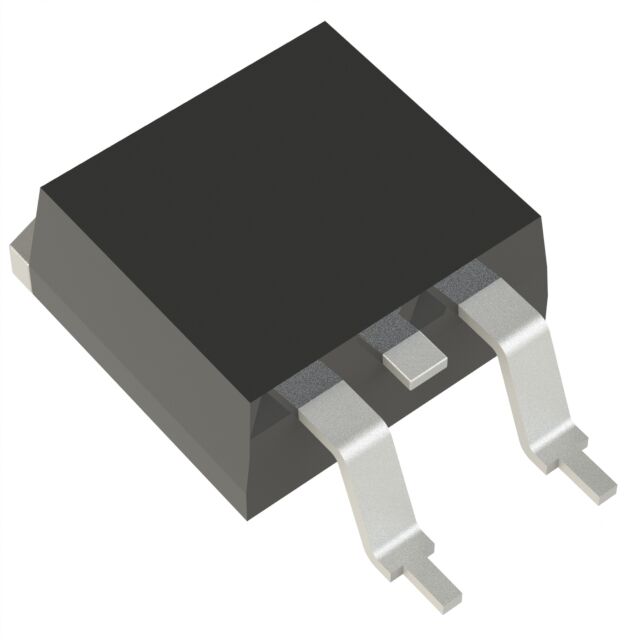

| Part Number | DPG30C300HB | DPG30C300PB | DPG30C300PC-TUB | DPG30C200HB |
| Manufacturer | IXYS | IXYS | IXYS | IXYS |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DIODE ARRAY GP 300V 15A TO-247AD | DIODE ARRAY GP 300V 15A TO-220-3 | DIODE ARRAY GP 300V 15A TO263 | DIODE ARRAY GP 200V 15A TO-247AD |
| Series | HiPerFRED²™ | HiPerFRED™ | DPG30C300PC | HiPerFRED™ |
| Packaging | Tube | Tube | Tube | Tube |
