DPX165950DT-8044A1

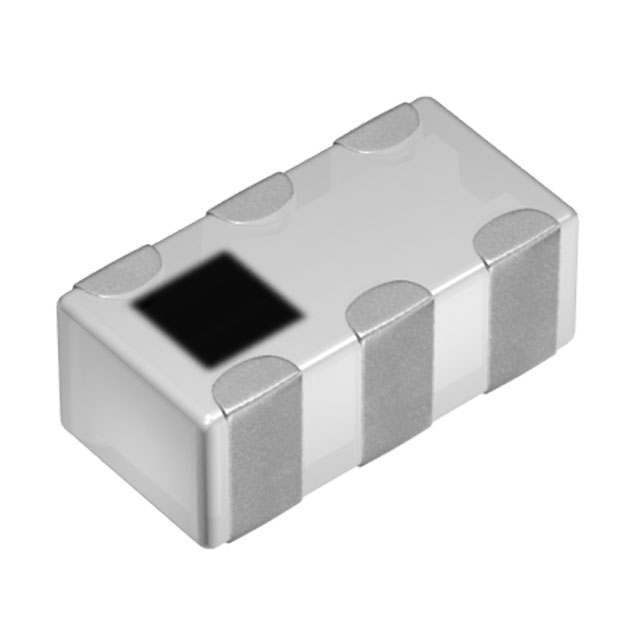

lmages are for reference only.DPX165950DT-8044A1
MULTILAYER DPX FOR WLAN/GPS/5G
Datasheet0603 (1608 Metric), 6 PC Pad
87,792 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
RF Diplexer 704MHz ~ 1.61GHz / 2.4GHz ~ 5.95GHz 0603 (1608 Metric), 6 PC Pad
DPX165950DT-8044A1
| Category | RF and Wireless - RF Multiplexers - |
| Manufacturer | TDK Corporation |
| Series | DPX |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Diplexer |
| Frequency Bands (Low / High) | 704MHz ~ 1.61GHz / 2.4GHz ~ 5.95GHz |
| Low Band Attenuation (min / max dB) | 16.00dB / 20.00dB |
| High Band Attenuation (min / max dB) | 20.00dB / 23.00dB |
| Return Loss (Low Band / High Band) | 10.03dB / 10.03dB |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric), 6 PC Pad |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
|
 |
| Part Number | DPX165950DT-8044A1 | DPX165950DT-8045A1 | DPX165950DT-8045A1 | DPX165950DT-8048A1 |
| Manufacturer | TDK Corporation | TDK Corporation | TDK Corporation | TDK Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MULTILAYER DPX FOR WLAN/GPS/5G | RF DIPLEXER 2.45/5.425GHZ 0603 | RF DIPLEXER 2.45/5.425GHZ 0603 | RF DIPLEXER 2.45/5.425GHZ 0603 |
| Series | DPX | DPX | DPX | DPX |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
