DPX252690DT-5021B1

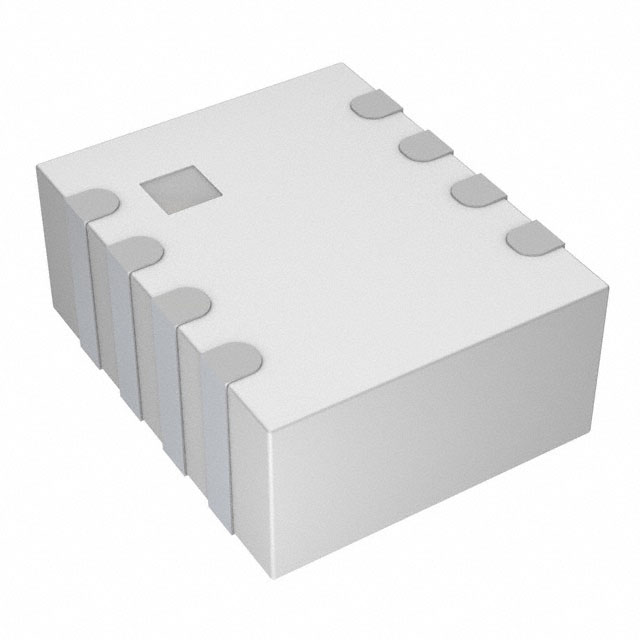

lmages are for reference only.DPX252690DT-5021B1
RF DIPLEXER 829MHZ/2.2GHZ 1008
Datasheet1008 (2520 Metric), 8 PC Pad
63,928 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
RF Diplexer 698MHz ~ 960MHz / 1.71GHz ~ 2.69GHz 1008 (2520 Metric), 8 PC Pad
DPX252690DT-5021B1
| Category | RF and Wireless - RF Multiplexers - |
| Manufacturer | TDK Corporation |
| Series | DPX |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Diplexer |
| Frequency Bands (Low / High) | 698MHz ~ 960MHz / 1.71GHz ~ 2.69GHz |
| Low Band Attenuation (min / max dB) | - |
| High Band Attenuation (min / max dB) | - |
| Return Loss (Low Band / High Band) | - |
| Mounting Type | Surface Mount |
| Package / Case | 1008 (2520 Metric), 8 PC Pad |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
|
 |
| Part Number | DPX252690DT-5021B1 | DPX252690DT-5031A1 | DPX252690DT-5031A1 | DPX252690DT-5032B1 |
| Manufacturer | TDK Corporation | TDK Corporation | TDK Corporation | TDK Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RF DIPLEXER 829MHZ/2.2GHZ 1008 | RF DIPLEXER 829MHZ/2.2GHZ 1008 | RF DIPLEXER 829MHZ/2.2GHZ 1008 | RF DIPLEXER 829.5MHZ/2.2GHZ 0402 |
| Series | DPX | DPX | DPX | DPX |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
