DRC-V-330K

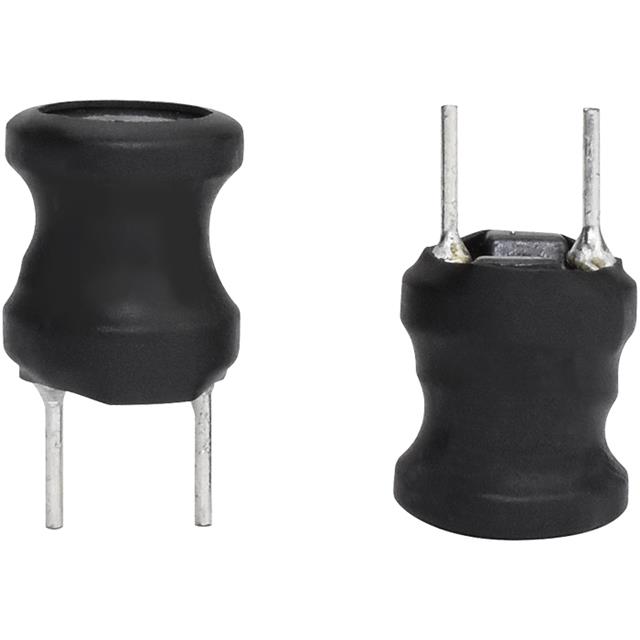

lmages are for reference only.DRC-V-330K
FIXED IND 33UH 2.45A 0.09OHM TH
DatasheetRadial, Vertical Cylinder
99,744 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
33 µH Unshielded Drum Core, Wirewound Inductor 2.45 A 90mOhm Max Radial, Vertical Cylinder
DRC-V-330K
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Signal Transformer |
| Series | DRC-V |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 33 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 2.45 A |
| Current - Saturation (Isat) | 1.6A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 90mOhm Max |
| Q @ Freq | 30 @ 2.52MHz |
| Frequency - Self Resonant | 7.8MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 2.52 MHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder |
| Supplier Device Package | Radial |
| Size / Dimension | 0.343" Dia (8.70mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Base Product Number | DRC-V |
| Product Attribute |  |
 |
 |
 |
| Part Number | DRC-V-331K | DRC-V-332K | DRC-V-333K | DRC-V-390K |
| Manufacturer | Signal Transformer | Signal Transformer | Signal Transformer | Signal Transformer |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 330UH 560MA 0.85OHM TH | FIXED IND 3.3MH 195MA 9OHM TH | FIXED IND 33MH 70MA 70OHM TH | FIXED IND 39UH 2.4A 0.1OHM TH |
| Series | Signal Transformer | Signal Transformer | Signal Transformer | Signal Transformer |
| Packaging | Tray | Tray | Tray | Tray |
