DRC-V-471K
lmages are for reference only.DRC-V-471K
FIXED IND 470UH 470MA 1.1OHM TH
DatasheetRadial, Vertical Cylinder
14,860 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
470 µH Unshielded Drum Core, Wirewound Inductor 470 mA 1.1Ohm Max Radial, Vertical Cylinder
DRC-V-471K
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Signal Transformer |
| Series | DRC-V |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 470 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 470 mA |
| Current - Saturation (Isat) | 460mA |
| Shielding | Unshielded |
| DC Resistance (DCR) | 1.1Ohm Max |
| Q @ Freq | 10 @ 796kHz |
| Frequency - Self Resonant | 1.9MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 796 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder |
| Supplier Device Package | Radial |
| Size / Dimension | 0.343" Dia (8.70mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Base Product Number | DRC-V |
| Product Attribute |  |
 |
 |
|

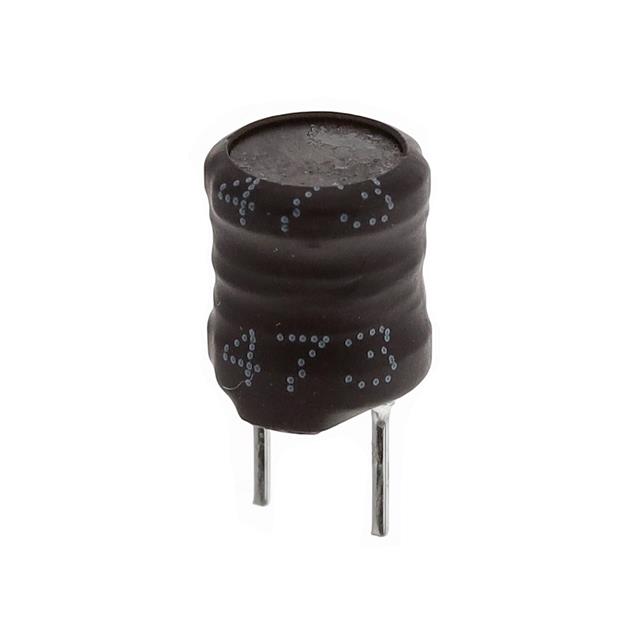

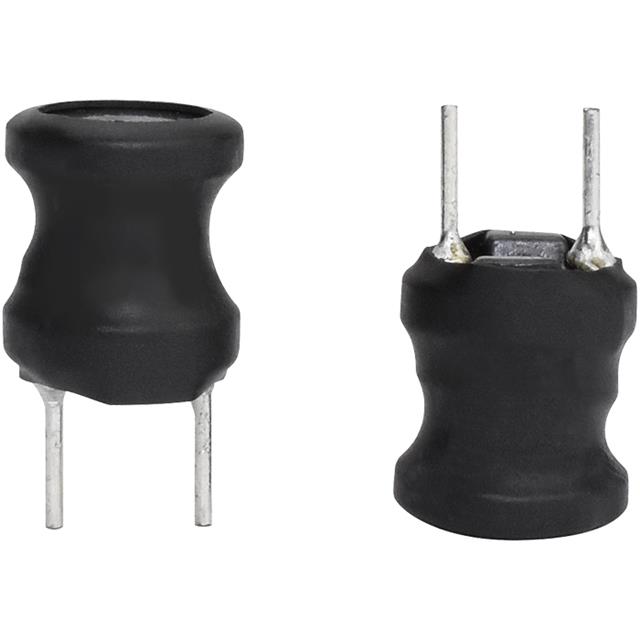

| Part Number | DRC-V-470K | DRC-V-473K | DRC-0406-101J-UL | DRC-0406-101J-UL |
| Manufacturer | Signal Transformer | Signal Transformer | Signal Transformer | Signal Transformer |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 47UH 2.35A 0.16OHM TH | FIXED IND 47MH 55MA 99OHM TH | RADIAL INDUCTOR WITH LEADS, 100. | RADIAL INDUCTOR WITH LEADS, 100. |
| Series | Signal Transformer | Signal Transformer | Signal Transformer | Signal Transformer |
| Packaging | Tray | Tray | Bag | Bag |
