DRQ125-471-R
lmages are for reference only.DRQ125-471-R
INDUCT ARRAY 2 COIL 473.1UH SMD
DatasheetNonstandard
96,191 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Shielded 2 Coil Inductor Array 1.892 mH Inductance - Connected in Series 473.1 µH Inductance - Connected in Parallel 718mOhm DC Resistance (DCR) - Parallel 870 mA Nonstandard
DRQ125-471-R
| Category | Inductors, Coils, Chokes - Arrays-Signal Transformers - |
| Manufacturer | Eaton - Electronics Division |
| Series | DRQ |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Number of Coils | 2 |
| Inductance - Connected In Parallel | 473.1 µH |
| Inductance - Connected In Series | 1.892 mH |
| Tolerance | ±20% |
| Current Rating - Parallel | 870 mA |
| Current Rating - Series | 434 mA |
| Current Saturation - Parallel | 1.02 A |
| Current Saturation - Series | 510 mA |
| DC Resistance (DCR) - Parallel | 718mOhm |
| DC Resistance (DCR) - Series | 2.87Ohm |
| Shielding | Shielded |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 0.492" L x 0.492" W (12.50mm x 12.50mm) |
| Height | 0.236" (6.00mm) |
| Base Product Number | - |
| Product Attribute |  |
|
|
 |

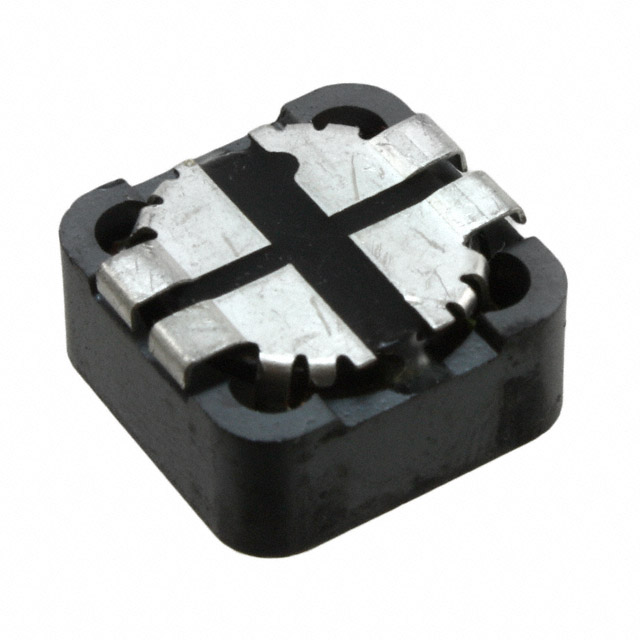

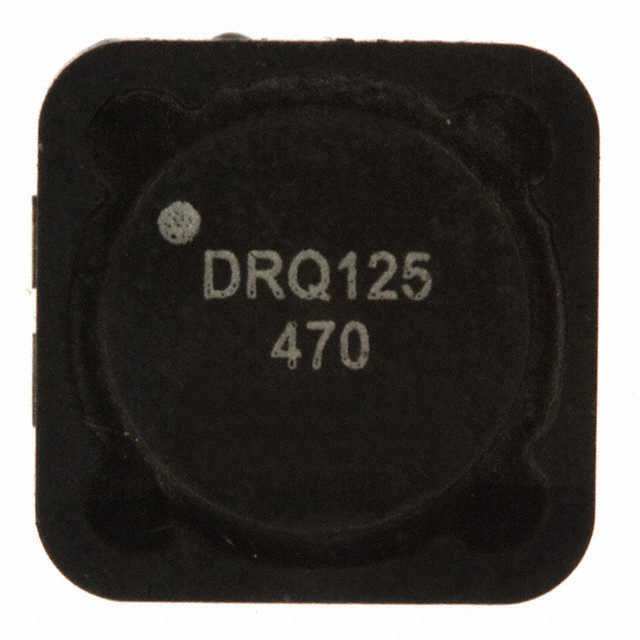

| Part Number | DRQ125-470-R | DRQ125-470-R | DRQ125-471-R | DRQ125-100-R |
| Manufacturer | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | INDUCT ARRAY 2 COIL 47.47UH SMD | INDUCT ARRAY 2 COIL 47.47UH SMD | INDUCT ARRAY 2 COIL 473.1UH SMD | INDUCT ARRAY 2 COIL 9.654UH SMD |
| Series | DRQ | DRQ | DRQ | DRQ |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
