DSB10I45PM
lmages are for reference only.Payment Methods
Delivery Services
Diode 45 V 10A Through Hole TO-220FP
DSB10I45PM
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | IXYS |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 45 V |
| Current - Average Rectified (Io) | 10A |
| Voltage - Forward (Vf) (Max) @ If | 560 mV @ 10 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - |
| Current - Reverse Leakage @ Vr | 7 mA @ 45 V |
| Capacitance @ Vr, F | - |
| Mounting Type | Through Hole |
| Package / Case | TO-220-2 Full Pack, Isolated Tab |
| Supplier Device Package | TO-220FP |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Base Product Number | DSB10I45 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
|

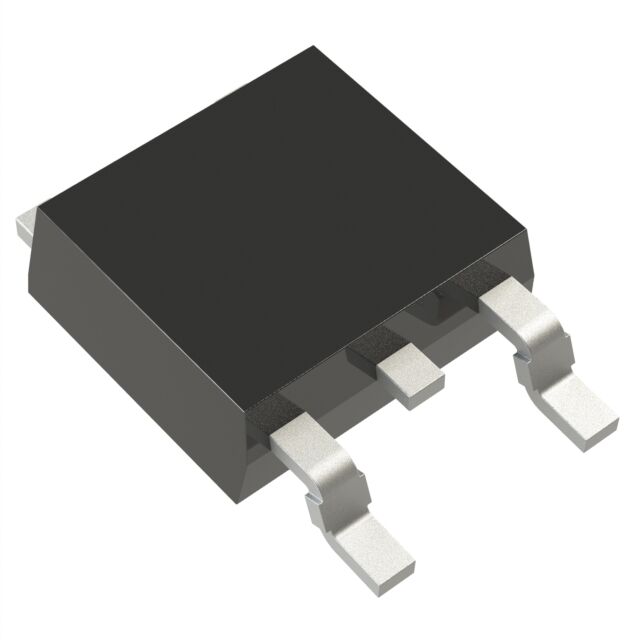

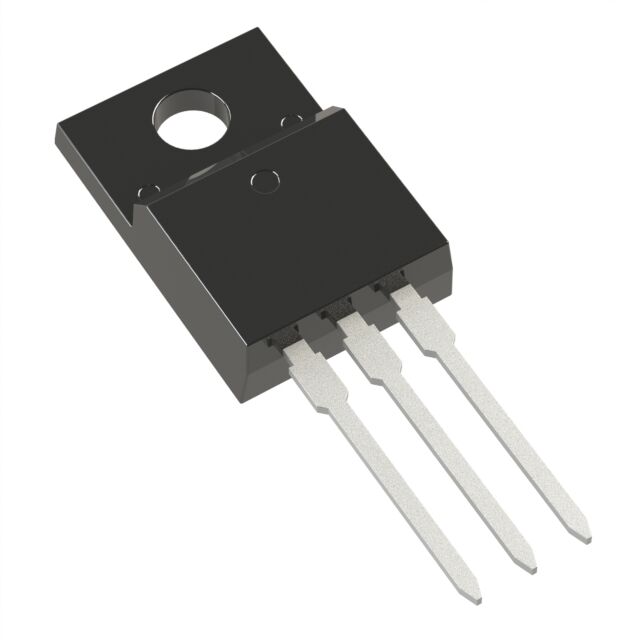

| Part Number | DSB10P60PN | DSB15IM30UC-TRL | DSB15IM30UC-TUB | DSB15IM45IB |
| Manufacturer | IXYS | IXYS | IXYS | IXYS |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | DIODE SCHOTTKY 60V 10A TO220ABFP | DIODE SCHOTTKY 30V 15A TO252AA | DIODE SCHOTTKY 30V 15A TO252AA | DIODE SCHOTTKY 45V 15A TO262 |
| Series | - | - | - | - |
| Packaging | Tube | Tape & Reel (TR) | Tube | Tube |
