DSC1001CI2-096.0000

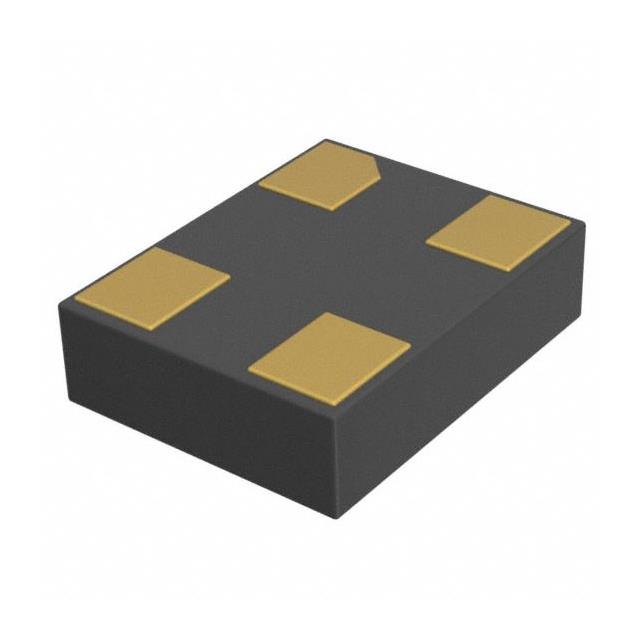

lmages are for reference only.DSC1001CI2-096.0000
MEMS OSC XO 96.0000MHZ CMOS SMD
Datasheet4-VDFN
17,151 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
96 MHz XO (Standard) CMOS Oscillator 1.8V ~ 3.3V Standby (Power Down) 4-VDFN
DSC1001CI2-096.0000
| Category | Crystals, Oscillators, Resonators - Oscillators - |
| Manufacturer | Microchip Technology |
| Series | DSC1001 |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Base Resonator | MEMS |
| Type | XO (Standard) |
| Frequency | 96 MHz |
| Function | Standby (Power Down) |
| Output | CMOS |
| Voltage - Supply | 1.8V ~ 3.3V |
| Frequency Stability | ±25ppm |
| Absolute Pull Range (APR) | - |
| Operating Temperature | -40°C ~ 85°C |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | 8.7mA |
| Ratings | AEC-Q100 |
| Mounting Type | Surface Mount |
| Package / Case | 4-VDFN |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height - Seated (Max) | 0.035" (0.90mm) |
| Base Product Number | DSC1001 |
| Product Attribute | |
|
 |
|
| Part Number | DSC1001CI2-096.0000 | DSC1001CI2-096.0000T | DSC1001CI1-001.0000 | DSC1001CI1-001.0000T |
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MEMS OSC XO 96.0000MHZ CMOS SMD | MEMS OSC XO 96.0000MHZ CMOS SMD | MEMS OSC XO 1.0000MHZ CMOS SMD | MEMS OSC XO 1.0000MHZ CMOS SMD |
| Series | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Packaging | Strip | Strip | Strip | Strip |
