DSC1001CI5-007.3728T

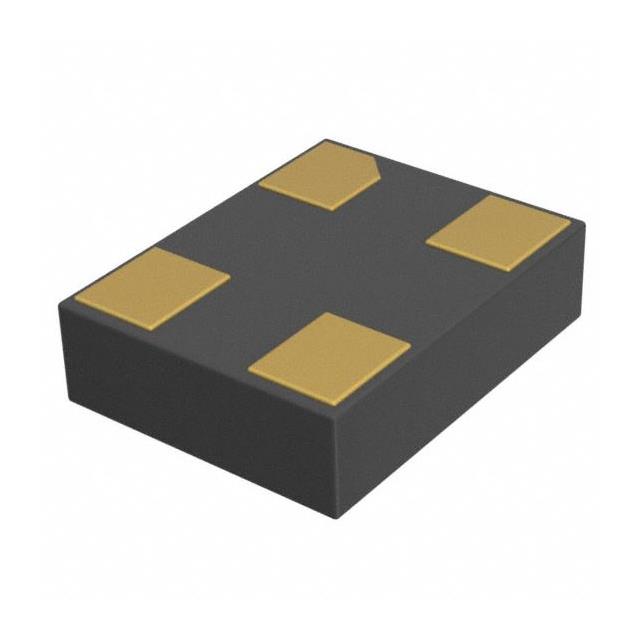

lmages are for reference only.DSC1001CI5-007.3728T
MEMS OSC XO 7.3728MHZ CMOS SMD
Datasheet4-VDFN
50,873 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
7.3728 MHz XO (Standard) CMOS Oscillator 1.8V ~ 3.3V Standby (Power Down) 4-VDFN
DSC1001CI5-007.3728T
| Category | Crystals, Oscillators, Resonators - Oscillators - |
| Manufacturer | Microchip Technology |
| Series | DSC1001 |
| Packaging | Strip |
| RoHS Status | ROHS3 Compliant |
| Base Resonator | MEMS |
| Type | XO (Standard) |
| Frequency | 7.3728 MHz |
| Function | Standby (Power Down) |
| Output | CMOS |
| Voltage - Supply | 1.8V ~ 3.3V |
| Frequency Stability | ±10ppm |
| Absolute Pull Range (APR) | - |
| Operating Temperature | -40°C ~ 85°C |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | 8mA |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-VDFN |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height - Seated (Max) | 0.035" (0.90mm) |
| Base Product Number | - |
| Product Attribute |  |
|
|
 |
| Part Number | DSC1001CI5-007.3728 | DSC1001CI5-003.2768T | DSC1001CI5-003.6864 | DSC1001CI5-003.6864T |
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MEMS OSC XO 7.3728MHZ CMOS SMD | MEMS OSC XO 3.2768MHZ CMOS SMD | MEMS OSC XO 3.6864MHZ CMOS SMD | MEMS OSC XO 3.6864MHZ CMOS SMD |
| Series | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Packaging | Strip | Strip | Strip | Strip |
