DSC1203BI2-100M0000

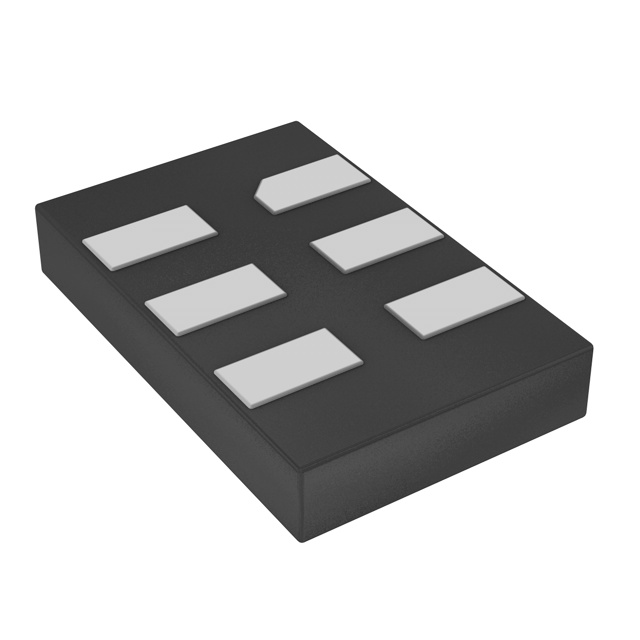

lmages are for reference only.DSC1203BI2-100M0000
MEMS OSC XO 100.0000MHZ LVDS SMD
Datasheet6-VDFN
79,372 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
100 MHz XO (Standard) LVDS Oscillator 2.25V ~ 3.63V Standby (Power Down) 6-VDFN
DSC1203BI2-100M0000
| Category | Crystals, Oscillators, Resonators - Oscillators - |
| Manufacturer | Microchip Technology |
| Series | DSC12X3 |
| Packaging | Strip |
| RoHS Status | ROHS3 Compliant |
| Base Resonator | MEMS |
| Type | XO (Standard) |
| Frequency | 100 MHz |
| Function | Standby (Power Down) |
| Output | LVDS |
| Voltage - Supply | 2.25V ~ 3.63V |
| Frequency Stability | ±25ppm |
| Absolute Pull Range (APR) | - |
| Operating Temperature | -40°C ~ 85°C |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | 32mA (Typ) |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 6-VDFN |
| Size / Dimension | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| Height - Seated (Max) | 0.035" (0.90mm) |
| Base Product Number | - |
| Product Attribute | |
 |
 |
|
| Part Number | DSC1203BI2-100M0000T | DSC1203BI2-125M0000 | DSC1203BI2-125M0000T | DSC1203BI2-200M0000 |
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MEMS OSC AUTO LOWPWR -40C-85C | MEMS OSC XO 125.0000MHZ LVDS SMD | MEMS OSC, LOW JITTER, 125MHZ, LV | MEMS OSC XO 200.0000MHZ LVDS SMD |
| Series | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Packaging | Strip | Strip | Strip | Strip |
