DSC8101AL2

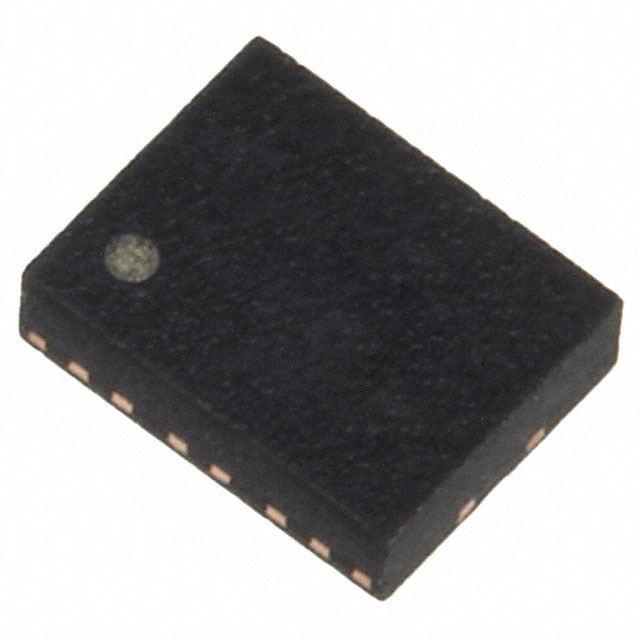

lmages are for reference only.DSC8101AL2
MEMS OSC PROG BLANK 10MHZ-170MHZ
Datasheet6-SMD, No Lead Exposed Pad
14,015 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
XO (Standard) CMOS 10 MHz ~ 170 MHz Programmable Oscillator 2.25V ~ 3.6V Standby 6-SMD, No Lead Exposed Pad
DSC8101AL2
| Category | Crystals, Oscillators, Resonators - Programmable Oscillators - |
| Manufacturer | Microchip Technology |
| Series | DSC8101 |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Base Resonator | MEMS |
| Type | XO (Standard) |
| Available Frequency Range | 10 MHz ~ 170 MHz |
| Function | Standby |
| Output | CMOS |
| Voltage - Supply | 2.25V ~ 3.6V |
| Frequency Stability | ±25ppm |
| Frequency Stability (Total) | - |
| Operating Temperature | -40°C ~ 105°C |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | 35mA |
| Ratings | AEC-Q100 |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD, No Lead Exposed Pad |
| Size / Dimension | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| Height - Seated (Max) | 0.035" (0.90mm) |
| Base Product Number | DSC8101 |
| Product Attribute |  |
 |
 |
 |
| Part Number | DSC8101AI2 | DSC8101AI2-PROGRAMMABLE | DSC8101AM2-PROGRAMMABLE | DSC8101BI2 |
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MEMS OSC PROG BLANK 10MHZ-170MHZ | MEMS OSC PROG XO CMOS 2.25-3.6V | MEMS OSC PROG XO CMOS 2.25-3.6V | MEMS OSC PROG BLANK 10MHZ-170MHZ |
| Series | DSC8101 | DSC8101 | DSC8101 | DSC8101 |
| Packaging | Tube | Tube | Tube | Tube |
