DSM7TA56101T
lmages are for reference only.DSM7TA56101T
DISPLAY 7SEG 0.56" SGL RED 10SMD
Datasheet10-SMD, No Lead
50,847 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Anode 2V 20mA 0.748" H x 0.492" W x 0.128" D (19.00mm x 12.50mm x 3.25mm) 10-SMD, No Lead
DSM7TA56101T
| Category | Optoelectronics - LED Character and Numeric - |
| Manufacturer | Visual Communications Company - VCC |
| Series | DSM7T |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> |
| RoHS Status | ROHS3 Compliant |
| Number of Characters | 1 |
| Size / Dimension | 0.748" H x 0.492" W x 0.128" D (19.00mm x 12.50mm x 3.25mm) |
| Digit/Alpha Size | 0.56" (14.22mm) |
| Display Type | 7-Segment |
| Common Pin | Common Anode |
| Color | Red |
| Voltage - Forward (Vf) (Typ) | 2V |
| Current - Test | 20mA |
| Millicandela Rating | 90mcd |
| Wavelength - Peak | 625nm |
| Power Dissipation (Max) | - |
| Package / Case | 10-SMD, No Lead |
| Base Product Number | DSM7TA56101 |
| Display Format | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | DSM7TA56105T | DSM7TA56106T | DSM7TA28101T | DSM7TA28105T |
| Manufacturer | Visual Communications Company - VCC | Visual Communications Company - VCC | Visual Communications Company - VCC | Visual Communications Company - VCC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

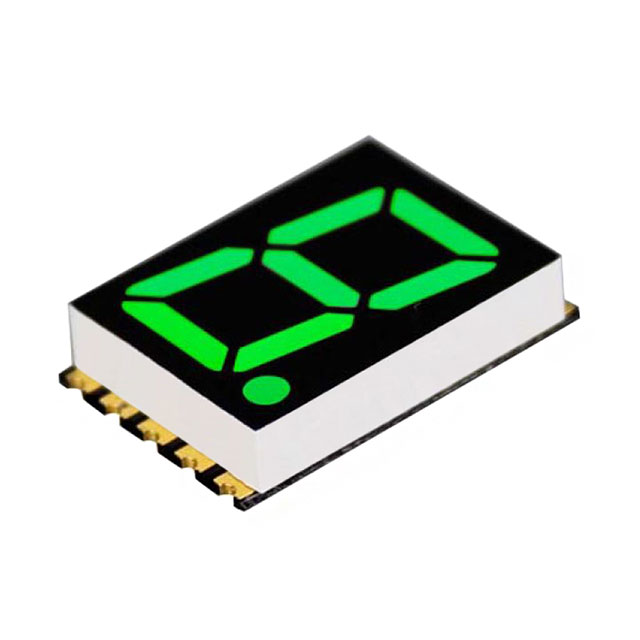

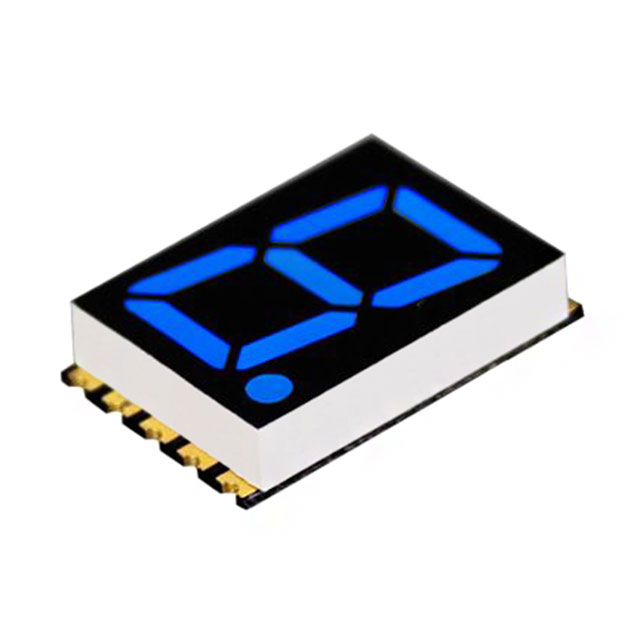

| Description | DISPLAY 7SEG 0.56" SGL GRN 10SMD | DISPLAY 7SEG 0.56" SGL BLU 10SMD | DISPLAY 7SEG 0.28" SGL RED 10SMD | DISPLAY 7SEG 0.28" SGL GRN 10SMD |
| Series | DSM7T | DSM7T | DSM7T | DSM7T |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> |
