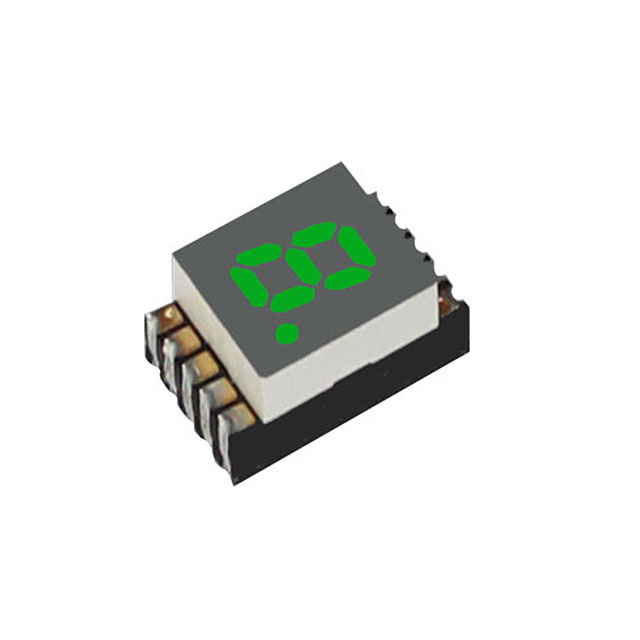

DSM7UA20105T
lmages are for reference only.DSM7UA20105T
DISPLAY 7SEG 0.2" SGL GRN 10SMD
Datasheet10-SMD, No Lead
66,044 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Display Modules - LED Character and Numeric Green 7-Segment 1 Character Common Anode 2.8V 20mA 0.433" H x 0.291" W x 0.122" D (11.00mm x 7.40mm x 3.10mm) 10-SMD, No Lead
DSM7UA20105T
| Category | Optoelectronics - LED Character and Numeric - |
| Manufacturer | Visual Communications Company - VCC |
| Series | DSM |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Number of Characters | 1 |
| Size / Dimension | 0.433" H x 0.291" W x 0.122" D (11.00mm x 7.40mm x 3.10mm) |
| Digit/Alpha Size | 0.20" (5.08mm) |
| Display Type | 7-Segment |
| Common Pin | Common Anode |
| Color | Green |
| Voltage - Forward (Vf) (Typ) | 2.8V |
| Current - Test | 20mA |
| Millicandela Rating | 70mcd |
| Wavelength - Peak | - |
| Power Dissipation (Max) | 120mW |
| Package / Case | 10-SMD, No Lead |
| Base Product Number | DSM7UA201 |
| Display Format | - |
| Product Attribute |  |
 |
 |
 |

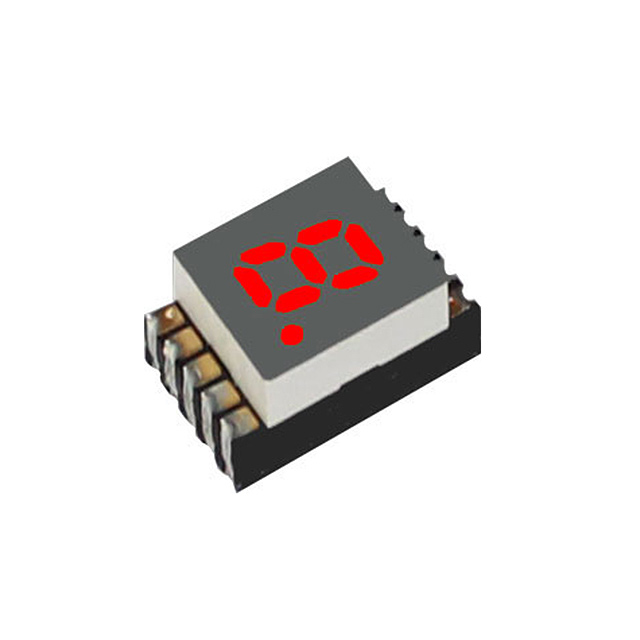

| Part Number | DSM7UA20101 | DSM7UA20101T | DSM7UA20105 | DSM7UA30101 |
| Manufacturer | Visual Communications Company - VCC | Visual Communications Company - VCC | Visual Communications Company - VCC | Visual Communications Company - VCC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

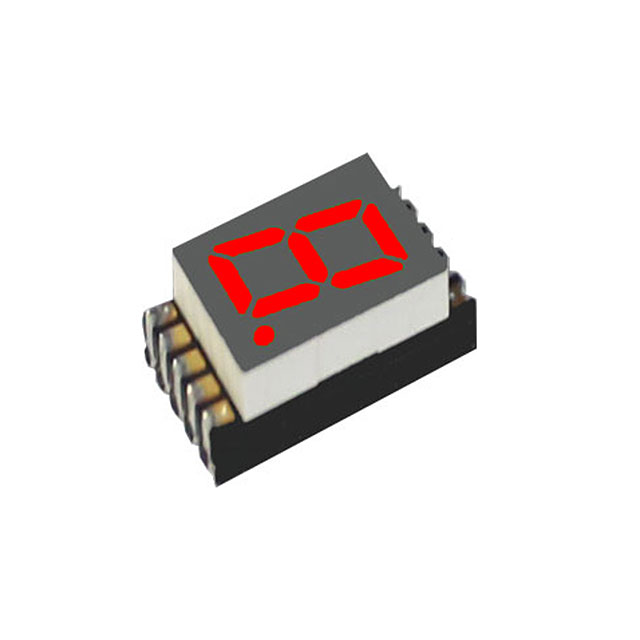

| Description | DISPLAY 7-SEG 0.2" SGL RED 10SMD | DISPLAY 7-SEG 0.2" SGL RED 10SMD | DISPLAY 7SEG 0.2" SGL GRN 10SMD | DISPLAY 7-SEG 0.3" SGL RED 10SMD |
| Series | DSM | DSM | DSM | DSM |
| Packaging | Strip | Tape & Reel (TR) | Strip | Strip |
