Product CatalogPart Number
DT1240-08LP3810-7
Manufacturer
Diodes IncorporatedDescription
TVS DIODE 5.5VWM 11V U-DFN3810-9
Datasheet
DatasheetPackage
9-UDFN
In Stock
25,404 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
DT1240-08LP3810-7
DT1240-08LP3810-7
lmages are for reference only.Payment Methods
Delivery Services
11V Clamp 5.5A Ipp Tvs Diode Surface Mount U-DFN3810-9 (Type B)
Quick Inquiry
DT1240-08LP3810-7
Specifications
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Diodes Incorporated |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Steering (Rail to Rail) |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 5.5V (Max) |
| Voltage - Breakdown (Min) | 6V |
| Voltage - Clamping (Max) @ Ipp | 11V |
| Current - Peak Pulse (10/1000µs) | 5.5A |
| Power - Peak Pulse | 60W |
| Power Line Protection | Yes |
| Applications | DVI, HDMI, VGA, USB |
| Capacitance @ Frequency | 0.6pF @ 1MHz |
| Operating Temperature | -55°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 9-UDFN |
| Supplier Device Package | U-DFN3810-9 (Type B) |
| Base Product Number | DT1240 |
| Unidirectional Channels | 8 |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
|
| Part Number | DT1240-02LP10-7B | DT1240-04LP-7 | DT1240-04LP20-7 | DT1240-04LPQ-7 |
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TVS DIODE 55VWM 11VC DSN1006-3 | TVS DIODE 5.5VWM 11VC U-DFN2510 | TVS DIODE 5.5VWM 11VC DFN2010-8 | DATALINE PROTECTION PP U-DFN2510 |
| Series | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) |
Customers Also Interested in
Recommended Products
DT1240-02LP10-7B
Diodes Incorporated
DT1240-04LP-7
Diodes Incorporated

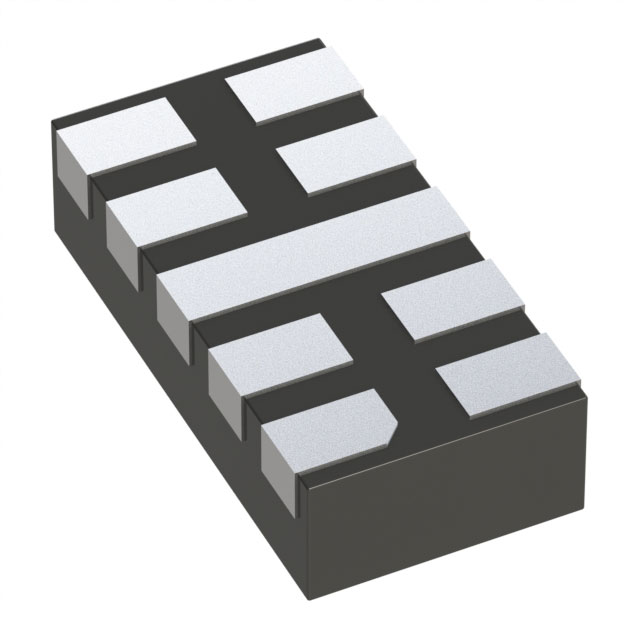

DT1240-04LP20-7
Diodes Incorporated
DT1240-04LPQ-7
Diodes Incorporated
DT1240A-04LP-7
Diodes Incorporated
DT1240A-04LP20-7
Diodes Incorporated

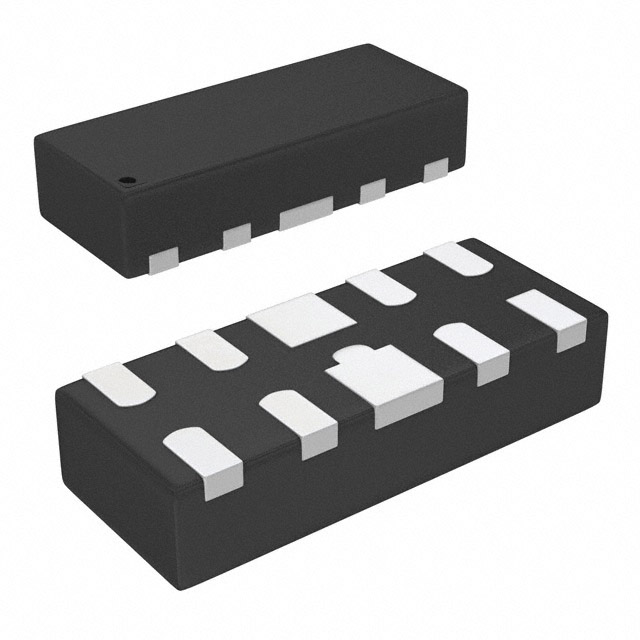

DT1240A-04LPQ-7
Diodes Incorporated
DT1240A-08LP3810-7
Diodes Incorporated

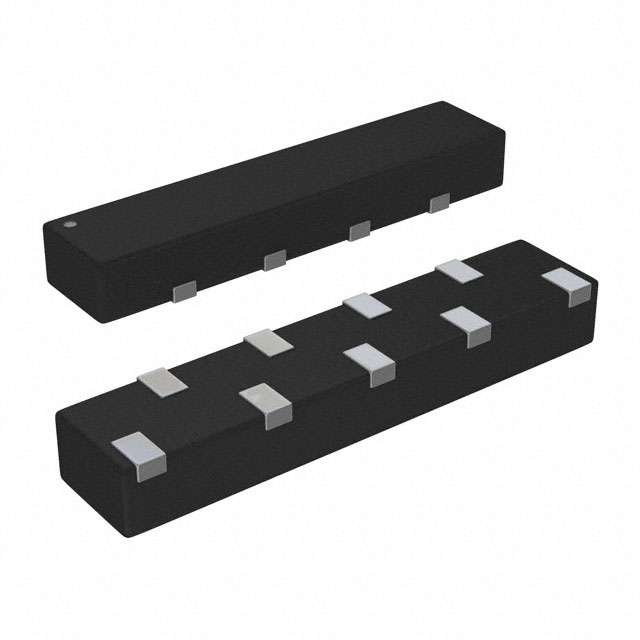

DT1240A-08LP3810Q-7
Diodes Incorporated
DT1240E-04LP-7
Diodes Incorporated
DT1240V3-04LP-7
Diodes Incorporated

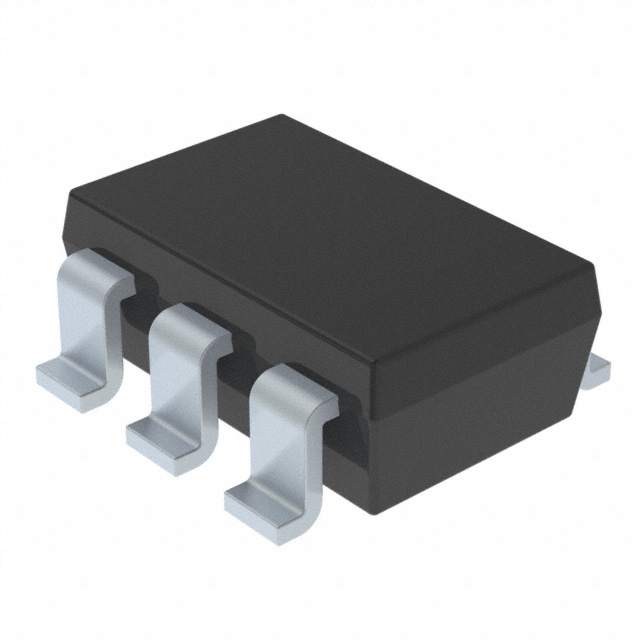

DT1240V3-04SO-7
