E32D501LPN222MDB7U
lmages are for reference only.Payment Methods
Delivery Services
2.2 mF 500 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 2000 Hrs @ 105°C
E32D501LPN222MDB7U
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | Chemi-Con |
| Series | U32D |
| Packaging | Bulk |
| RoHS Status | |
| Capacitance | 2.2 mF |
| Tolerance | ±20% |
| Voltage - Rated | 500 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | - |
| Lead Spacing | 1.126" (28.60mm) |
| Size / Dimension | 2.500" Dia (63.50mm) |
| Height - Seated (Max) | 4.606" (117.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Base Product Number | - |
| Impedance | - |
| Product Attribute |  |
 |
|
 |

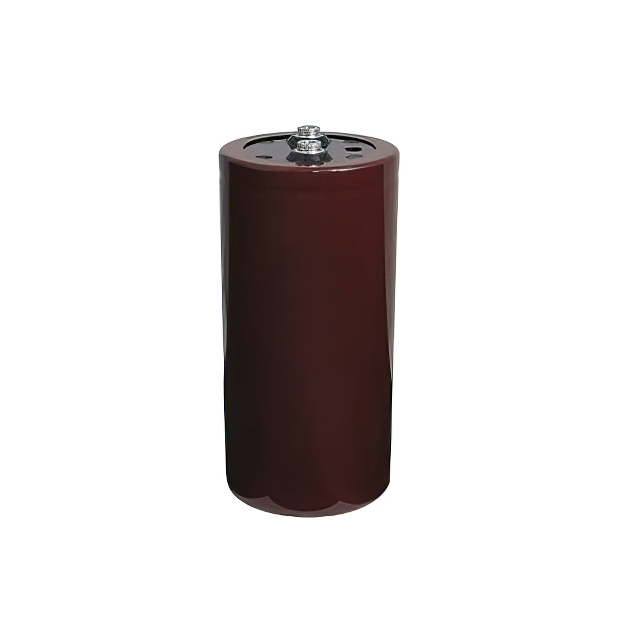

| Part Number | E32D501LPN102TCA5U | E32D501LPN272MDE3U | E32D501LPN821TC92U | E32D501LPS182MDA5U |
| Manufacturer | Chemi-Con | Chemi-Con | Chemi-Con | Chemi-Con |
| RoHS Status | ||||
| Description | CAP ALUM 1MF 500V SCREW CHAS MT | CAP ALUM 2.7MF 20% 500V SCREW CH | CAP ALUM 820UF 500V SCREW CHAS M | CAP ALUM 1.8MF 20% 500V SCREW |
| Series | Chemi-Con | Chemi-Con | Chemi-Con | Chemi-Con |
| Packaging | Bulk | Bulk | Bulk | Bulk |
