E35SE12013PDPG
lmages are for reference only.E35SE12013PDPG
9-60VIN; 12VOUT, 150W, ENCAPSULA
DatasheetEighth Brick
69,934 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 12V 13A 9V - 60V Input
E35SE12013PDPG
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Delta Electronics |
| Series | E35SE (150W) |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 9V |
| Voltage - Input (Max) | 60V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 13A |
| Power (Watts) | 156 W |
| Applications | ITE (Commercial), Railway |
| Features | Adjustable Output, Remote On/Off, Remote Sense |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Efficiency | 91% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | Eighth Brick |
| Size / Dimension | 2.30" L x 0.90" W x 0.53" H (58.4mm x 22.8mm x 13.5mm) |
| Supplier Device Package | Eighth Brick |
| Control Features | Enable, Active High |
| Approval Agency | CSA, EN, IEC, UL |
| Standard Number | 50155; 60950-1; 62368-1 |
| Base Product Number | E35SE |
| Voltage - Isolation | 4.242 kV |
| Product Attribute | |
 |
 |
 |

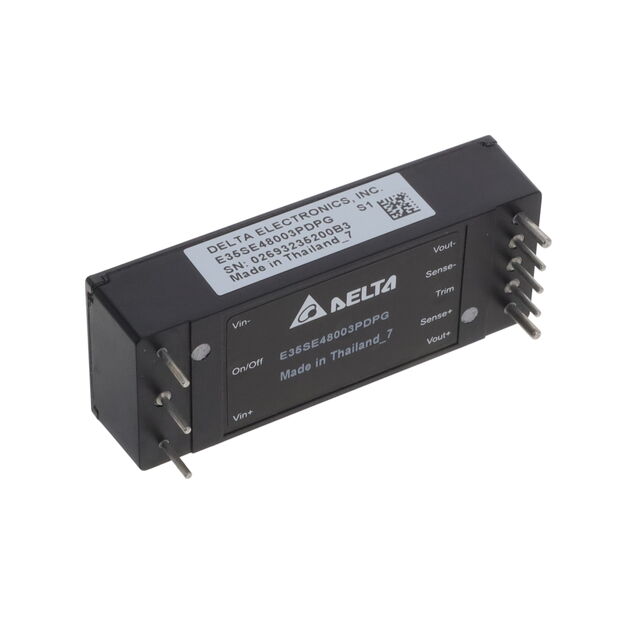

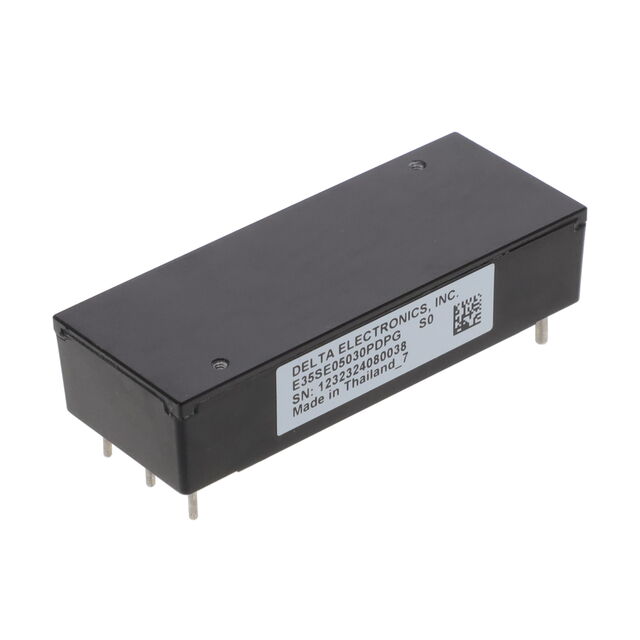

| Part Number | E35SE12013PDPG | E35SE05030PDPG | E35SE24006PDPG | E35SE48003PDPG |
| Manufacturer | Delta Electronics | Delta Electronics | Delta Electronics | Delta Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 9-60VIN; 12VOUT, 150W, ENCAPSULA | 9-60VIN; 5VOUT, 150W, ENCAPSULAT | 9-60VIN; 24VOUT, 150W, ENCAPSULA | 9-60VIN; 48VOUT, 150W, ENCAPSULA |
| Series | Delta Electronics | Delta Electronics | Delta Electronics | Delta Electronics |
| Packaging | Tray | Tray | Tray | Tray |
