E36D101LPN223TDB7M

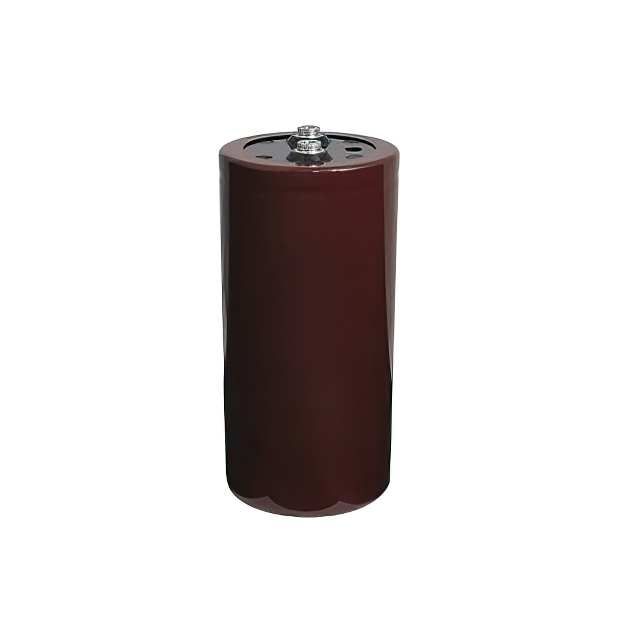

lmages are for reference only.Payment Methods
Delivery Services
22000 µF 100 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 2000 Hrs @ 85°C
E36D101LPN223TDB7M
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | Chemi-Con |
| Series | U36D |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Capacitance | 22000 µF |
| Tolerance | -10%, +50% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | - |
| Lead Spacing | 1.126" (28.60mm) |
| Size / Dimension | 2.500" Dia (63.50mm) |
| Height - Seated (Max) | 4.625" (117.48mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Base Product Number | - |
| Impedance | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | E36D101LPN223TDB7N | E36D101LPN223TDB7U | E36D101LPN223TDA5U | E36D101LPN223TDE3U |
| Manufacturer | Chemi-Con | Chemi-Con | Chemi-Con | Chemi-Con |
| RoHS Status | RoHS Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | CAP ALUM 22000UF 100V SCREW CHAS | CAP ALUM 22000UF 100V SCREW CHAS | CAP ALUM 22000UF 100V SCREW CHAS | CAP ALUM 22MF 100V SCREW CHAS MT |
| Series | Chemi-Con | Chemi-Con | Chemi-Con | Chemi-Con |
| Packaging | Bulk | Bulk | Bulk | Bulk |
