E36D500HPN123MA54M
lmages are for reference only.Payment Methods
Delivery Services
12000 µF 50 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 28.7mOhm @ 120Hz 2000 Hrs @ 85°C
E36D500HPN123MA54M
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | Chemi-Con |
| Series | U36D |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Capacitance | 12000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | 28.7mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 4.34 A @ 120 Hz |
| Ripple Current @ High Frequency | 6.076 A @ 3 kHz |
| Lead Spacing | 0.500" (12.70mm) |
| Size / Dimension | 1.375" Dia (34.93mm) |
| Height - Seated (Max) | 2.402" (61.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Base Product Number | - |
| Impedance | - |
| Product Attribute | |
|
 |
 |
| Part Number | E36D500HPN123TCA5U | E36D500HPN124MDA5M | E36D500HPN124UE92U | E36D500HLN124MDA5U |
| Manufacturer | Chemi-Con | Chemi-Con | Chemi-Con | Chemi-Con |
| RoHS Status | RoHS Compliant | |||

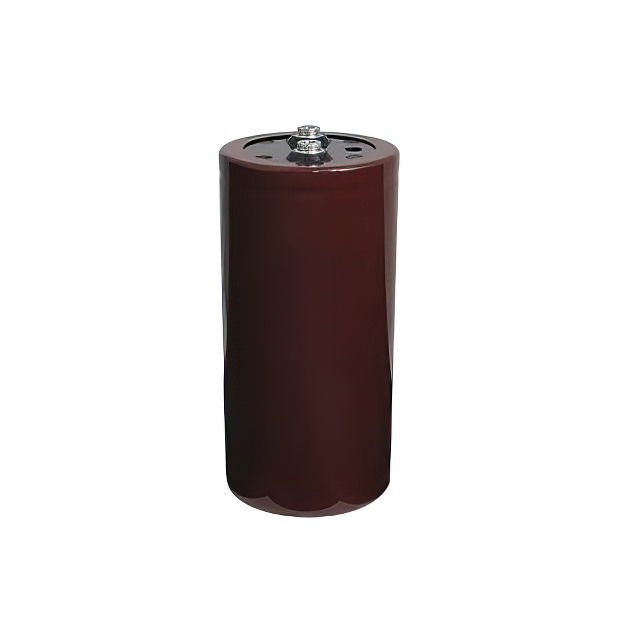

| Description | CAP ALUM 12MF 50V SCREW CHAS MT | CAP ALUM 120000UF 20% 50V SCREW | CAP ALUM 120MF 50V SCREW CHAS MT | CAP ALUM 120MF 20% 50V SCREW CHA |
| Series | Chemi-Con | Chemi-Con | Chemi-Con | Chemi-Con |
| Packaging | Bulk | Bulk | Bulk | Bulk |
