E36D500LLN823MCB7C
lmages are for reference only.Payment Methods
Delivery Services
82 mF 50 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 6.3mOhm @ 120Hz 2000 Hrs @ 85°C
E36D500LLN823MCB7C
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | Chemi-Con |
| Series | U36D |
| Packaging | Bulk |
| RoHS Status | |
| Capacitance | 82 mF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | 6.3mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 15.2 A @ 120 Hz |
| Ripple Current @ High Frequency | 21.28 A @ 3 kHz |
| Lead Spacing | 0.874" (22.20mm) |
| Size / Dimension | 2.000" Dia (50.80mm) |
| Height - Seated (Max) | 4.606" (117.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Base Product Number | - |
| Impedance | - |
| Product Attribute |  |
|
 |
|

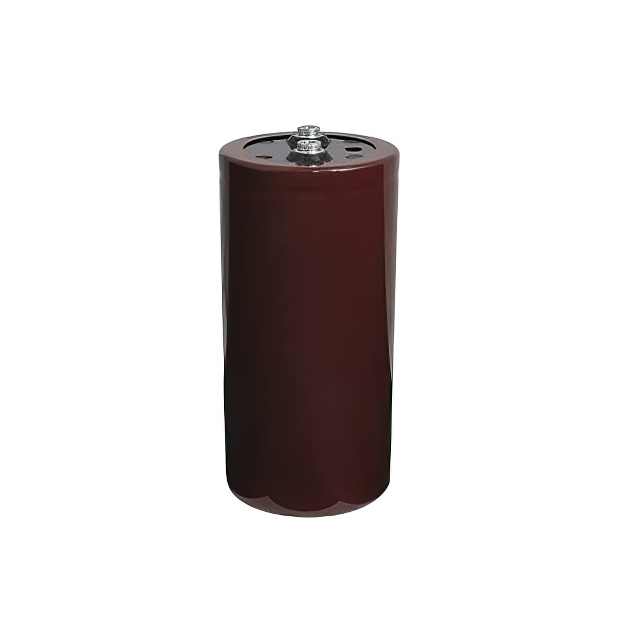

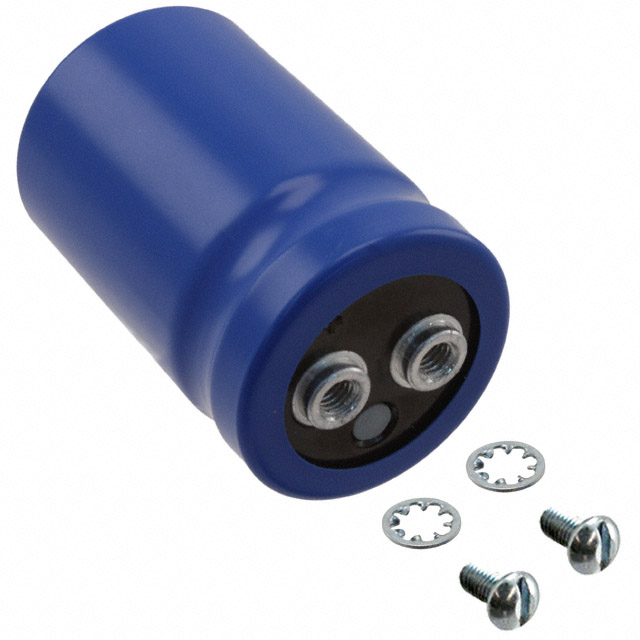

| Part Number | E36D500LLN823MCB7Q | E36D500LLN183MA67M | E36D500LPN103TA67M | E36D500LPN103TA79U |
| Manufacturer | Chemi-Con | Chemi-Con | Chemi-Con | Chemi-Con |
| RoHS Status | RoHS Compliant | RoHS Compliant | ||
| Description | CAP ALUM 82MF 20% 50V SCREW CHAS | CAP ALUM 18000UF 20% 50V SCREW | CAP ALUM 10000UF 50V SCREW CHAS | CAP ALUM 10MF 50V SCREW CHAS MT |
| Series | Chemi-Con | Chemi-Con | Chemi-Con | Chemi-Con |
| Packaging | Bulk | Bulk | Bulk | Bulk |
