E36D551HPN102MDA5M
lmages are for reference only.Payment Methods
Delivery Services

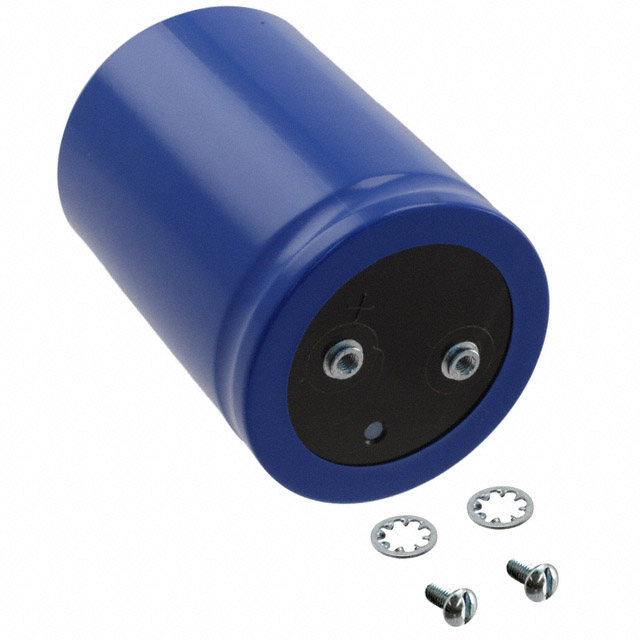

1000 µF 550 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 265mOhm @ 120Hz 2000 Hrs @ 85°C
E36D551HPN102MDA5M
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | Chemi-Con |
| Series | U36D |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 550 V |
| ESR (Equivalent Series Resistance) | 265mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.89 A @ 120 Hz |
| Ripple Current @ High Frequency | 5.446 A @ 3 kHz |
| Lead Spacing | 1.125" (28.58mm) |
| Size / Dimension | 2.500" Dia (63.50mm) |
| Height - Seated (Max) | 4.125" (104.78mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Base Product Number | - |
| Impedance | - |
| Product Attribute | |
|
|
|
| Part Number | E36D551HPN102MCE3M | E36D551HLS222MED0M | E36D551HPC152MDE3M | E36D551HPN121MA54M |
| Manufacturer | Chemi-Con | Chemi-Con | Chemi-Con | Chemi-Con |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | CAP ALUM 1000UF 20% 550V SCREW | CAP ALUM 2200UF 20% 550V SCREW | CAP ALUM 1500UF 20% 550V SCREW | CAP ALUM 120UF 20% 550V SCREW CH |
| Series | Chemi-Con | Chemi-Con | Chemi-Con | Chemi-Con |
| Packaging | Bulk | Bulk | Bulk | Bulk |
